0257-0-00-01-00-00-03-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .020DIA TINLEAD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .020DIA TINLEAD

Technical Specifications

Parameters and characteristics for this part

Specification	0257-0-00-01-00-00-03-0

Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Insulation	Non-Insulated
Length - Above Flange [x]	6.76 mm
Length - Above Flange [x]	0.266 in
Length - Overall [x]	0.297 in
Length - Overall [x]	7.54 mm
Mounting Hole Diameter [diameter]	1.5 mm
Mounting Hole Diameter [diameter]	0.059 in
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.51 mm
Pin Size - Above Flange [diameter]	0.02 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Press-Fit

Part	Contact Material	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Terminal Type	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Termination	Length - Above Flange [x]	Length - Above Flange [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Style	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Type
Mill-Max Manufacturing Corp. 0257-0-00-15-00-00-03-0	Brass Alloy	0.297 in	7.54 mm	10 Áin	0.25 Ám	Gold	PC Pin	0.51 mm	0.02 in	Non-Insulated	Press-Fit	6.76 mm	0.266 in	1.5 mm	0.059 in	Single End	1.83 mm	0.072 in	Through Hole
Mill-Max Manufacturing Corp. 0257-0-00-01-00-00-03-0	Brass Alloy	0.297 in	7.54 mm	200 Áin	5.08 Ám	Tin-Lead	PC Pin	0.51 mm	0.02 in	Non-Insulated	Press-Fit	6.76 mm	0.266 in	1.5 mm	0.059 in	Single End	1.83 mm	0.072 in	Through Hole
Mill-Max Manufacturing Corp. 0257-0-00-80-00-00-03-0	Brass Alloy	0.297 in	7.54 mm	200 Áin	5.08 Ám	Tin	PC Pin	0.51 mm	0.02 in	Non-Insulated	Press-Fit	6.76 mm	0.266 in	1.5 mm	0.059 in	Single End	1.83 mm	0.072 in	Through Hole
Mill-Max Manufacturing Corp. 0257-0-00-34-00-00-03-0	Brass Alloy	0.297 in	7.54 mm	50 µin	1.27 µm	Gold	PC Pin	0.51 mm	0.02 in	Non-Insulated	Press-Fit	6.76 mm	0.266 in	1.5 mm	0.059 in	Single End	1.83 mm	0.072 in	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

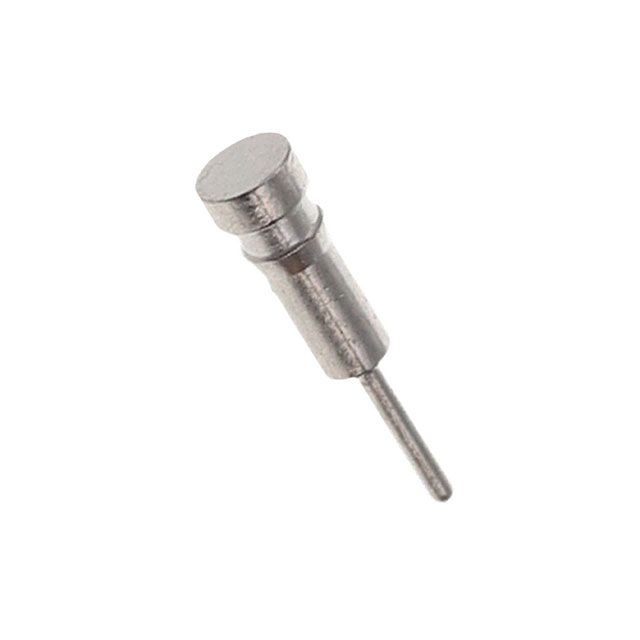

PC Pin Terminal Connector Through Hole Tin-Lead 0.020" (0.51mm) Dia

Technical documentation and resources

No documents available
