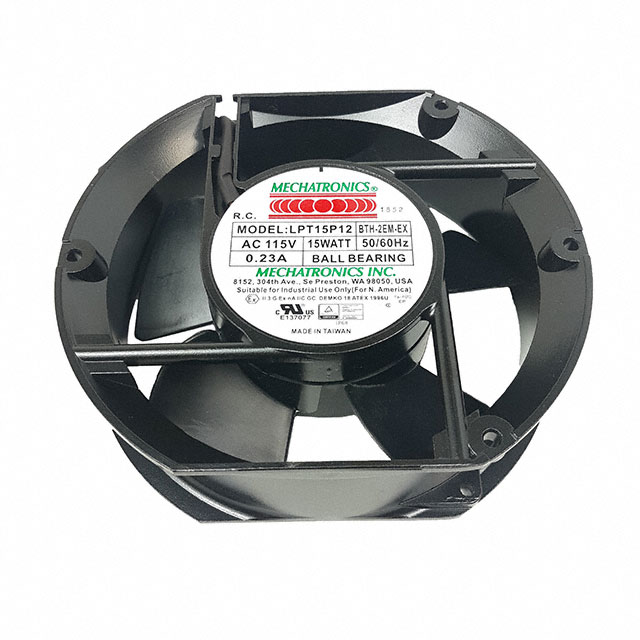

LPT15P12-BTHR-2EM-EX

Obsolete

Mechatronics Bearing Group

EC FAN AXIAL 172X150X51MM 120VAC

Search across all available documentation for this part.

Obsolete

Mechatronics Bearing Group

EC FAN AXIAL 172X150X51MM 120VAC

Technical Specifications

Parameters and characteristics for this part

Specification	LPT15P12-BTHR-2EM-EX

Air Flow	220 CFM
Air Flow	6.16 m³/min
Approval Agency	ATEX
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Tubeaxial
Features	Auto Restart, Electronic Commutation (EC)
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Metal
Noise	57 dB
Power (Watts)	15 W
RPM	3000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.62 in H2O
Static Pressure	154.4 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	100 VAC
Weight	700 g
Weight	1.543 lb
Width [y]	51 mm

Part	Approval Agency	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Bearing Type	Static Pressure	Static Pressure	Termination	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Features	Weight	Weight	Noise	Power (Watts)	Material - Blade	Air Flow	Air Flow	Material - Frame	Ingress Protection	RPM	Fan Type
Mechatronics Bearing Group LPT15P12-BTHR-2EM-EX	ATEX	0.23 A	130 VAC	100 VAC	51 mm	Ball	0.62 in H2O	154.4 Pa	2 Terminals	Rectangular/Rounded	150 mm	172 mm	115 VAC	Auto Restart Electronic Commutation (EC)	700 g	1.543 lb	57 dB	15 W	Plastic	220 CFM	6.16 m³/min	Metal	IP68 - Dust Tight Waterproof	3000 RPM	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m³/min) 2 Terminals
