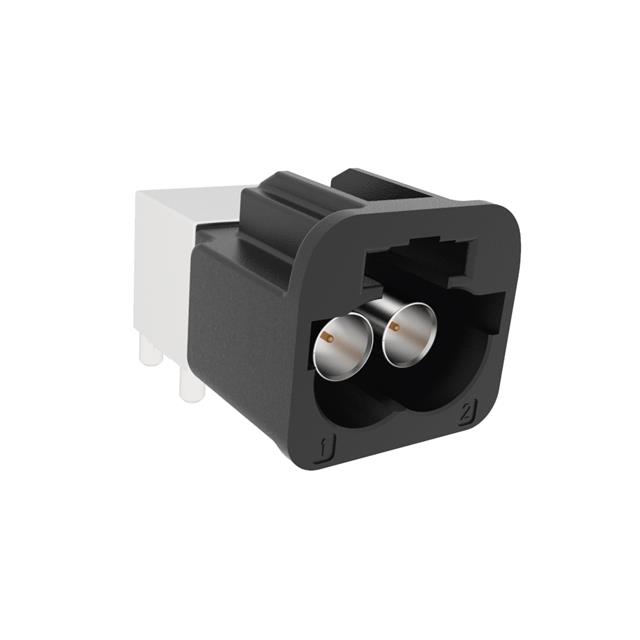

FM2-NARP-PCB-1

Active

Amphenol RF

RF CONNECTOR, AUTOMATE, TYPE A MINI-FAKRA, 2 PORT, PCB THROUGH HOLE, R/A, PLUG, 50 OHM, A CODE

Search across all available documentation for this part.

Active

Amphenol RF

RF CONNECTOR, AUTOMATE, TYPE A MINI-FAKRA, 2 PORT, PCB THROUGH HOLE, R/A, PLUG, 50 OHM, A CODE

Technical Specifications

Parameters and characteristics for this part

Specification	FM2-NARP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Fakra, Miniature Coaxial, Twinaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code A
Frequency - Max [Max]	9 GHz
Housing Color	Jet, Black
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Center Contact Plating	Shield Termination	Voltage Rating	Impedance	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Ports	Body Material	Contact Termination	Frequency - Max [Max]	Connector Type	Connector Style	Mounting Type	Housing Color	Dielectric Material	Body Finish	Mating Cycles	Center Contact Material
Amphenol RF FM2-NARP-PCB-1	Gold	Solder	335 V	50 Ohms	Latch Lock	-40 °C	105 ░C	Code A	1	Zinc Alloy	Solder	9 GHz	Male Pin Plug	Fakra Miniature Coaxial Twinaxial	Through Hole Right Angle	Black Jet	Liquid Crystal Polymer (LCP)	Tin	25	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial, Fakra, Twinaxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
