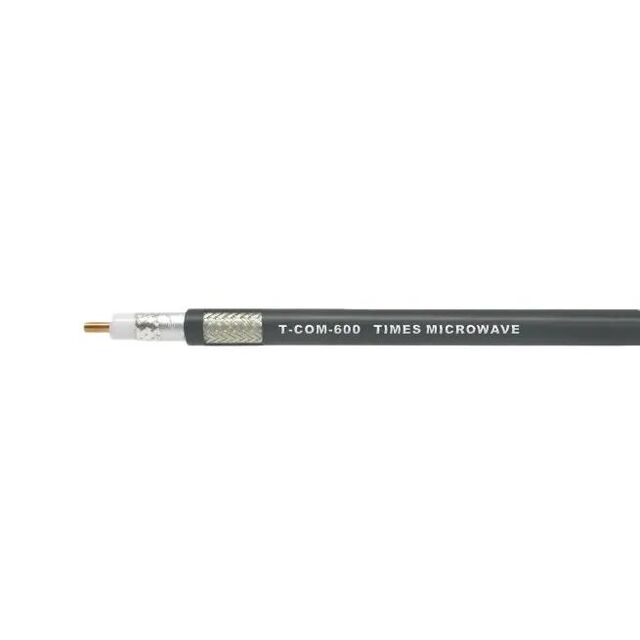

TCOM-600

Active

Amphenol Times Microwave Systems

STANDARD CABLE, BLK PE JKT FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TCOM-600

Active

Amphenol Times Microwave Systems

STANDARD CABLE, BLK PE JKT FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCOM-600

Cable Type	Coaxial
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	11.56 mm
Dielectric Diameter [diameter]	0.455 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	14.99 mm
Jacket (Insulation) Diameter [diameter]	0.59 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Silver Coated
Shield Type	Braid
Spool Size	500 '
Spool Size	152.4 m
VoP, Velocity of Propagation	87

TCOM Series

Part	Dielectric Material	Impedance	Shield Type	Jacket Color	Shield Material	Conductor Strand	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	VoP, Velocity of Propagation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Length	Spool Size	Spool Size	Dielectric Diameter [diameter]
Amphenol Times Microwave Systems TCOM-400	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial	7.24 mm	0.285 in	Aluminum Copper Coated	85 °C	-40 °C	Polyethylene (PE)	85	10.29 mm	0.405 in	152.4 m	6000 in
Amphenol Times Microwave Systems TCOM-200-FR	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial - Riser	2.95 mm	0.116 in	Copper Bare	85 °C	-40 °C	Polyethylene (PE)	83	4.95 mm	0.195 in
Amphenol Times Microwave Systems TCOM-240-FR	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial - Riser	3.81 mm	0.15 in	Copper Bare	85 °C	-40 °C	Polyethylene (PE)	84	6.1 mm	0.24 in
Amphenol Times Microwave Systems TCOM-300	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial	4.83 mm	0.19 in	Copper Bare	85 °C	-40 °C	Polyethylene (PE)	85	7.62 mm	0.3 in
Amphenol Times Microwave Systems TCOM-600-FR	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial - Riser	11.56 mm	0.455 in	Aluminum Copper Coated	85 °C	-40 °C	Polyethylene (PE)	87	14.99 mm	0.59 in
Amphenol Times Microwave Systems TCOM-600	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial	11.56 mm	0.455 in	Aluminum Copper Coated	85 °C	-40 °C	Polyethylene (PE)	87	14.99 mm	0.59 in			Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems TCOM-200	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial	2.95 mm	0.116 in	Copper Bare	85 °C	-40 °C	Polyethylene (PE)	83	4.95 mm	0.195 in
Amphenol Times Microwave Systems TCOM-500-FR	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial - Riser	9.4 mm	0.37 "	Aluminum Copper Coated	85 °C	-40 °C	Polyethylene (PE)	86	12.7 mm	0.5 in
Amphenol Times Microwave Systems TCOM-195-FR	Foam Polyethylene (FPE)	50 Ohms	Braid Foil	Black	Copper Silver Coated	Solid	Coaxial - Riser	0.11 in		Copper Bare	85 °C	-40 °C	Polyethylene (PE)	76	4.95 mm	0.195 in						2.79 mm
Amphenol Times Microwave Systems TCOM-400-FR	Foam Polyethylene (FPE)	50 Ohms	Braid	Black	Copper Silver Coated	Solid	Coaxial - Riser	7.24 mm	0.285 in	Aluminum Copper Coated	85 °C	-40 °C	Polyethylene (PE)	85	10.29 mm	0.405 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 19.90
		3	$ 18.38
		5	$ 17.77
		7	$ 17.36
		10	$ 16.86
		25	$ 15.84
		50	$ 15.03
		100	$ 14.32

Description

General part information

TCOM Series

Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
