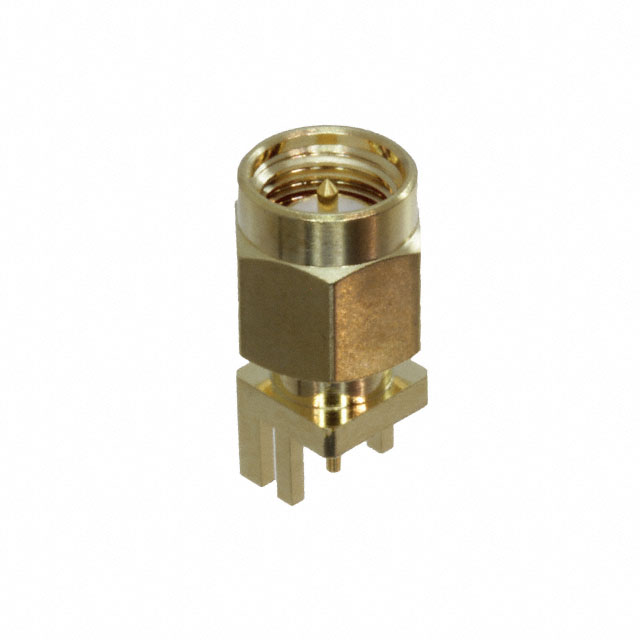

RF2-154-T-17-50-G - RF2-154-T-17-50-G

RF2-154-T-17-50-G

Active
Adam Tech

CONN SMA 0HZ TO 6GHZ 50OHM SOLDER ST EDGE MOUNT PL GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications
RF2-154-T-17-50-G - RF2-154-T-17-50-G

RF2-154-T-17-50-G

Active
Adam Tech

CONN SMA 0HZ TO 6GHZ 50OHM SOLDER ST EDGE MOUNT PL GOLD

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationRF2-154-T-17-50-G
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMA
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]18 GHz
Housing ColorWhite
Impedance50 Ohms
Mounting TypeBoard Edge, Right Angle, Through Hole, End Launch
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating335 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.35
10$ 3.33
25$ 3.00
50$ 2.78
100$ 2.57
250$ 2.33
500$ 2.17
1000$ 2.03
2500$ 1.86

Description

General part information

RF2-154 Series

SMA Connector Plug, Male Pin 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
