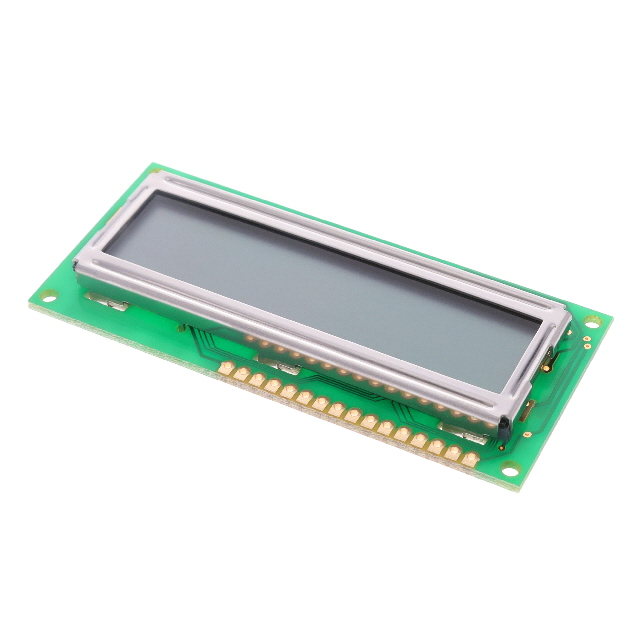

LCM-H01601DTR

Active

Lumex Opto/Components Inc.

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [y]	Dot Size [x]	Viewing Area [x]	Viewing Area [y]	Interface	Display Format [x]	Display Format [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters	Character Size [z]	Character Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Display Type	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Backlight	Character Format [y]	Character Format [x]	Display Mode
Lumex Opto/Components Inc. LCM-H01601DSF	0.75 mm	0.55 mm	66 mm	16 mm	Parallel 8-Bit	16	1	4.7 V	5.3 V	16	6.56 mm	3.07 mm	-20 C	70 °C	STN - Super-Twisted Nematic	12.7 mm	36 mm	80 mm	LED	8 Dots	5 Dots	Transflective
Lumex Opto/Components Inc. LCM-H01601DTR	0.75 mm	0.55 mm	66 mm	16 mm	Parallel 8-Bit	16	1	4.7 V	5.3 V	16	6.56 mm	3.07 mm	-20 C	70 °C	TN - Twisted Nematic	12.7 mm	36 mm	80 mm	Without Backlight	8 Dots	5 Dots	Reflective
Lumex Opto/Components Inc. LCM-H01601DSR	0.75 mm	0.55 mm	66 mm	16 mm	Parallel 8-Bit	16	1	4.7 V	5.3 V	16	6.56 mm	3.07 mm	-20 C	70 °C	STN - Super-Twisted Nematic	12.7 mm	36 mm	80 mm	Without Backlight	8 Dots	5 Dots	Reflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel, 8-Bit 80.00mm x 36.00mm x 12.70mm
