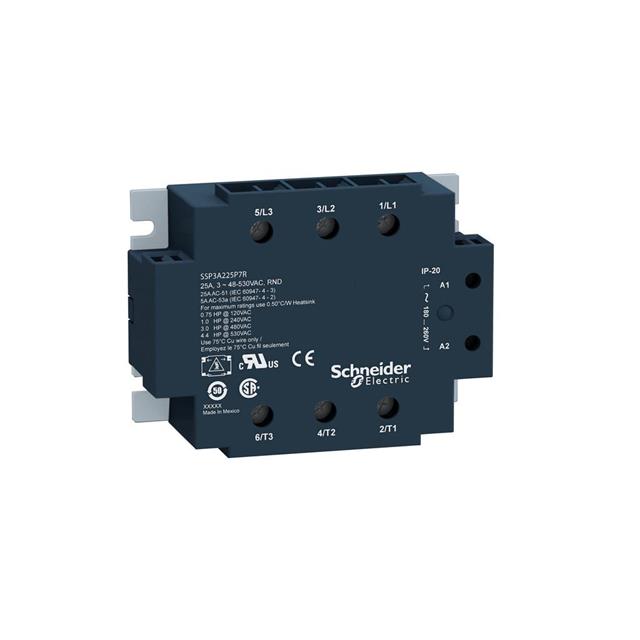

SSP3A225P7T

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, 3PST-NO, 180-280VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE RELAY, 3PST-NO, 180-280VAC

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Load Current	Supplier Device Package
SQUARE D BY SCHNEIDER ELECTRIC SSP3A250BDT	AC Zero Cross	CSA UL	32 V	4 V	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	50 A
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225BD	AC Zero Cross	CSA UL	32 V	4 V	Screw Terminal	Chassis Mount	-40 °C	80 C	Hockey Puck	25 A	Hockey Puck
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225F7T	AC Zero Cross	CSA UL	140 VAC	90 VAC	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP3A250B7R	AC	CSA UL	36 VAC	18 VAC/DC	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	50 A
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225P7	AC Zero Cross	CSA UL	280 VAC/DC	180 VAC	Screw Terminal	Chassis Mount	-40 °C	80 C	Hockey Puck	25 A	Hockey Puck
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225B7R	AC	CSA UL	36 VAC	18 VAC/DC	Screw Terminal	Chassis Mount	-40 °C	80 C	Hockey Puck	25 A	Hockey Puck
SQUARE D BY SCHNEIDER ELECTRIC SSP3A250P7	AC Zero Cross	CSA UL	280 VAC/DC	180 VAC	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	50 A
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225BDT	AC Zero Cross	CSA UL	32 V	4 V	Screw Terminal	Chassis Mount	-40 °C	80 C	Hockey Puck	25 A	Hockey Puck
SQUARE D BY SCHNEIDER ELECTRIC SSP3A225P7T	AC Zero Cross	CSA UL	280 VAC/DC	180 VAC	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP3A250F7R	AC	CSA UL	140 VAC	90 VAC	Screw Terminal	Chassis Mount	-40 °C	80 C	Module	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
