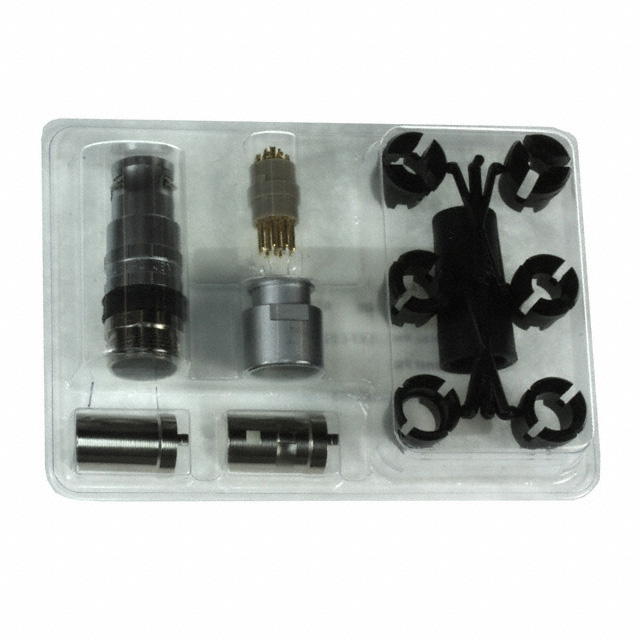

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXFE2G12MSSDSR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXFE2G12MSSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Cable Clamp, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Voltage Rating	830 V

JBXFE2G Series

Part	Current Rating (Amps)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Primary Material	Connector Type	Ingress Protection	Shell Material	Backshell Material, Plating	Voltage Rating	Color	Shielding	Orientation	Features	Material Flammability Rating	Number of Positions	Fastening Type	Mounting Type	Shell Finish	Contact Finish - Mating	Insert Material	Termination	Number of Positions
Souriau-Sunbank by Eaton JBXFE2G10MSSDSR	8 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	830 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	10	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)
Souriau-Sunbank by Eaton JBXFE2G07MCSDSR	11 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	730 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	7	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Crimp
Souriau-Sunbank by Eaton JBXFE2G19MCSDSR	5 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	660 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	19	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Crimp
Souriau-Sunbank by Eaton JBXFE2G10MCSDSR	8 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	830 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	10	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Crimp
Souriau-Sunbank by Eaton JBXFE2G06MSSDSR	12 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	900 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	6	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)
Souriau-Sunbank by Eaton JBXFE2G12MSSDSR	7 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	830 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	12	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)
Souriau-Sunbank by Eaton JBXFE2G08MCSDSR	10 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	830 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	8	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)	Crimp
Souriau-Sunbank by Eaton JBXFE2G07MSSDSR	11 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	730 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0	7	Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)
Souriau-Sunbank by Eaton JBXFE2G16MSSDSR	6 A	Industrial Instrumentation Medical Telecommunications	125 °C	-40 °C	0.5 µm	19.7 µin	2	Metal	Male Pins Plug	IP68 - Dust Tight Waterproof	Brass	Brass Chrome over Nickel	730 V	Silver	Shielded	G	Backshell Cable Clamp	UL94 V-0		Push-Pull	Free Hanging (In-Line)	Chrome over Nickel	Gold	Polyetheretherketone (PEEK)		16
