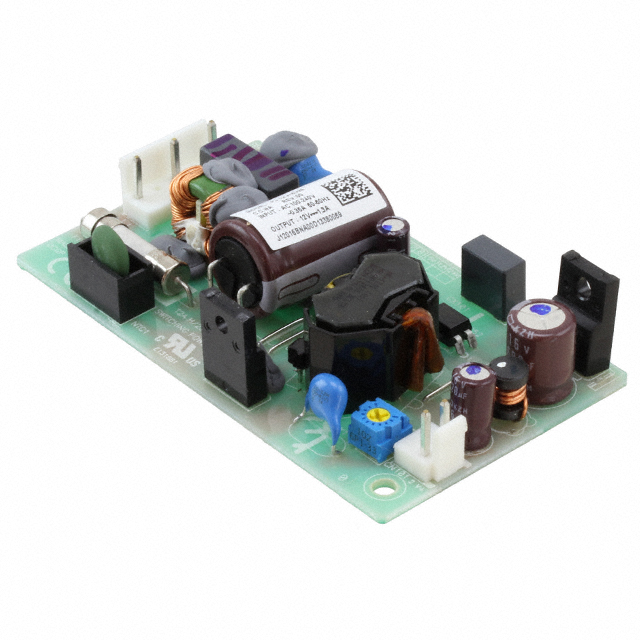

PJ-12V15WBNA

Active

Delta Electronics

AC/DC CONVERTER 12V 15W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-12V15WBNA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	1.3 A
Efficiency	82.5 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15 W
Size / Dimension [x]	87.5 mm
Size / Dimension [x]	3.44 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	22 mm
Size / Dimension [z]	0.87 in
Type	Open Frame, Conformal Coated
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Current - Output 1	Efficiency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Approval Agency	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Applications	Number of Outputs	Voltage - Isolation
Delta Electronics PJ-12V15WBNA	1.3 A	82.5 %	Adjustable Output Universal Input	-10 °C	70 °C	15 W	Conformal Coated Open Frame	CB CE cURus TUV	Chassis Mount	22 mm	0.87 in	1.97 "	87.5 mm	3.44 in	50 mm	12 V	ITE (Commercial)	1	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 17.72

General part information

Open Frame, Conformal Coated AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
