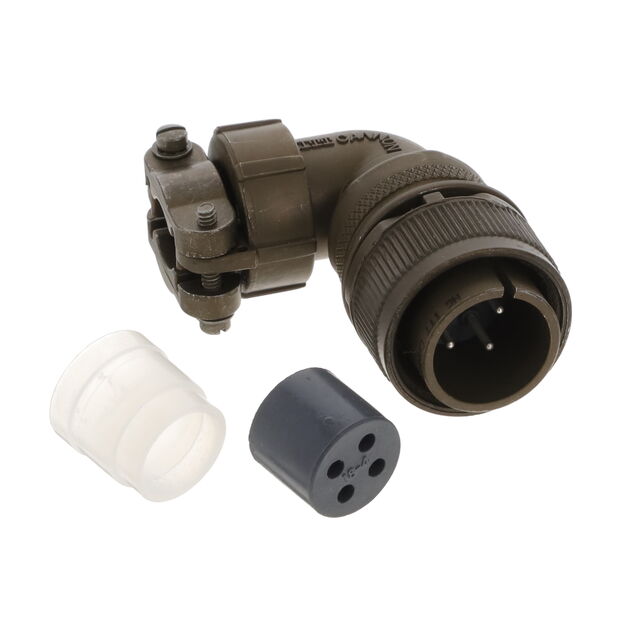

MS3108E18-4P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108E18-4P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E18-4P

Applications	Military, Marine
Cable Opening [custom]	0.531 in
Cable Opening [custom]	13.49 mm
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-4
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3108E18 Series

Part	Color	Current Rating (Amps)	Mounting Type	Grade	Contact Material	Connector Type	Insert Material	Features	Qualification	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish - Mating	Orientation	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Ingress Protection	Shell Finish	Applications	Voltage Rating	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Industrial Operations MS3108E18-25P
Amphenol Industrial Operations MS3108E18-25S
Amphenol Industrial Operations MS3108E18-4S	Olive Drab	13 A	Free Hanging (In-Line) Right Angle	Military	Copper Alloy	Female Sockets Plug	Neoprene	Cable Clamp Coupling Nut	MIL-DTL-5015	18-4	Metal	-55 °C	125 °C	Unshielded	Silver	N	0.531 in	13.49 mm	4	Environment Resistant	Olive Drab Chromate over Cadmium	Marine Military	900 VAC 1250 VDC	Aluminum Alloy
Amphenol Industrial Operations MS3108E18-23P
Amphenol Industrial Operations MS3108E18-4P	Olive Drab	13 A	Free Hanging (In-Line) Right Angle	Military	Copper Alloy	Male Pins Plug	Neoprene	Cable Clamp Coupling Nut	MIL-DTL-5015	18-4	Metal	-55 °C	125 °C	Unshielded	Silver	N	0.531 in	13.49 mm	4	Environment Resistant	Olive Drab Chromate over Cadmium	Marine Military	900 VAC 1250 VDC	Aluminum Alloy
Amphenol Industrial Operations MS3108E18-1S	Olive Drab		Free Hanging (In-Line) Right Angle		Copper Alloy	Female Sockets Plug	Neoprene	Cable Clamp Coupling Nut	MIL-5015		Metal	-55 °C	125 °C	Unshielded	Silver	N			10	Environment Resistant	Olive Drab Chromate over Cadmium	Marine Military		Aluminum Alloy	1	18
Amphenol Industrial Operations MS3108E18-26P
Amphenol Industrial Operations MS3108E18-24S
Amphenol Industrial Operations MS3108E18-8S	Olive Drab	13 A 23 A	Free Hanging (In-Line) Right Angle	Military	Copper Alloy	Female Sockets Plug	Neoprene	Cable Clamp Coupling Nut	MIL-DTL-5015	18-8	Metal	-55 °C	125 °C	Unshielded	Silver	N	0.531 in	13.49 mm	8	Environment Resistant	Olive Drab Chromate over Cadmium	Marine Military		Aluminum Alloy
Amphenol Industrial Operations MS3108E18-26S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 47.82
		10	$ 43.88
		25	$ 42.19
		50	$ 40.79
		100	$ 38.54
		250	$ 37.41

Description

General part information

MS3108E18 Series

4 Position Circular Connector Plug, Male Pins Solder Cup
