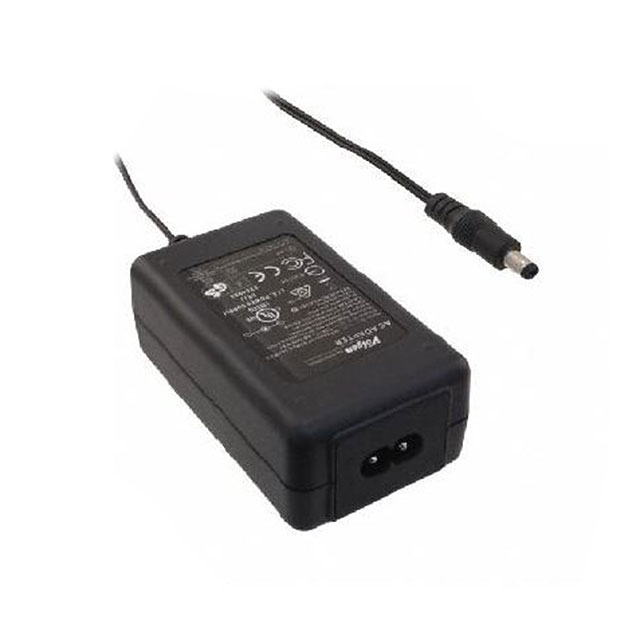

KTPS18-09022DT-2P-VI-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 20W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS18-09022DT-2P-VI-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS18-09022DT-2P-VI-P1

Applications	ITE (Commercial)
Approval Agency	RCM, UL, cUL, CB, CE, GS, PSE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.2 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	9 V

KTPS18 Series

Part	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	Form	Current - Output (Max) [Max]	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Cord Length	Cord Length	Input Connector	Efficiency	Approval Agency	Region Utilized	Operating Temperature [Max]	Standard Number
Volgen + Furuno KTPS18-16012WA-VI-P1	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	19 W	Wall Mount (Class II)	1.2 A	16 V	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	cUL PSE UL	North America	40 °C
Volgen + Furuno KTPS18-18011WA-VI-P1	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)		18 V	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	cUL PSE UL	North America	40 °C
Volgen + Furuno KTPS18-16012MP-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	19 W	Wall Mount (Class II)	1.2 A	16 V	240 VAC	100 VAC	Multi-Blade (Included)	1.41 in 35.8 mm	2.95 in 75 mm				2.58 in 65.6 mm	ITE (Commercial)	1.5 m	59 in	Multi-Blade	Level VI	CB CE cUL GS PSE RCM UL	International	40 °C
Volgen + Furuno KTPS18-15013WA-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)	1.3 A	15 VDC	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	cUL PSE UL	North America	40 °C
Volgen + Furuno KTPS18-12016WA-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	19 W	Wall Mount (Class II)	1.6 A	12 V	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	IEC	North America	40 °C	60950-1
Volgen + Furuno KTPS18-09022WA-VI-P1	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)	2.2 A	9 V	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	cUL PSE UL	International	40 °C
Volgen + Furuno KTPS18-18011MP-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)		18 V	240 VAC	100 VAC	Multi-Blade (Included)	1.41 in 35.8 mm	2.95 in 75 mm				2.58 in 65.6 mm	ITE (Commercial)	1.5 m	59 in	Multi-Blade	Level VI	CB CE cUL GS PSE RCM UL	International	40 °C
Volgen + Furuno KTPS18-09022MP-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)	2.2 A	9 V	240 VAC	100 VAC	Multi-Blade (Included)	1.41 in 35.8 mm	2.95 in 75 mm				2.58 in 65.6 mm	ITE (Commercial)	1.5 m	59 in	Multi-Blade	Level VI	CB CE cUL GS PSE RCM UL	International	40 °C
Volgen + Furuno KTPS18-09022DT-2P-VI-P1	Positive Center	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Desktop (Class II)	2.2 A	9 V	240 VAC	100 VAC	Cord	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	ITE (Commercial)	1.5 m	59 in	IEC 320-C8	Level VI	CB CE cUL GS PSE RCM UL	International	40 °C
Volgen + Furuno KTPS18-09022WA-VI-P2	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	20 W	Wall Mount (Class II)	2.2 A	9 V	240 VAC	100 VAC	Fixed Blade	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	1.5 m	59 in	NEMA 1-15P	Level VI	cUL PSE UL	International	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 14.51

Description

General part information

KTPS18 Series

9V 20 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

No documents available
