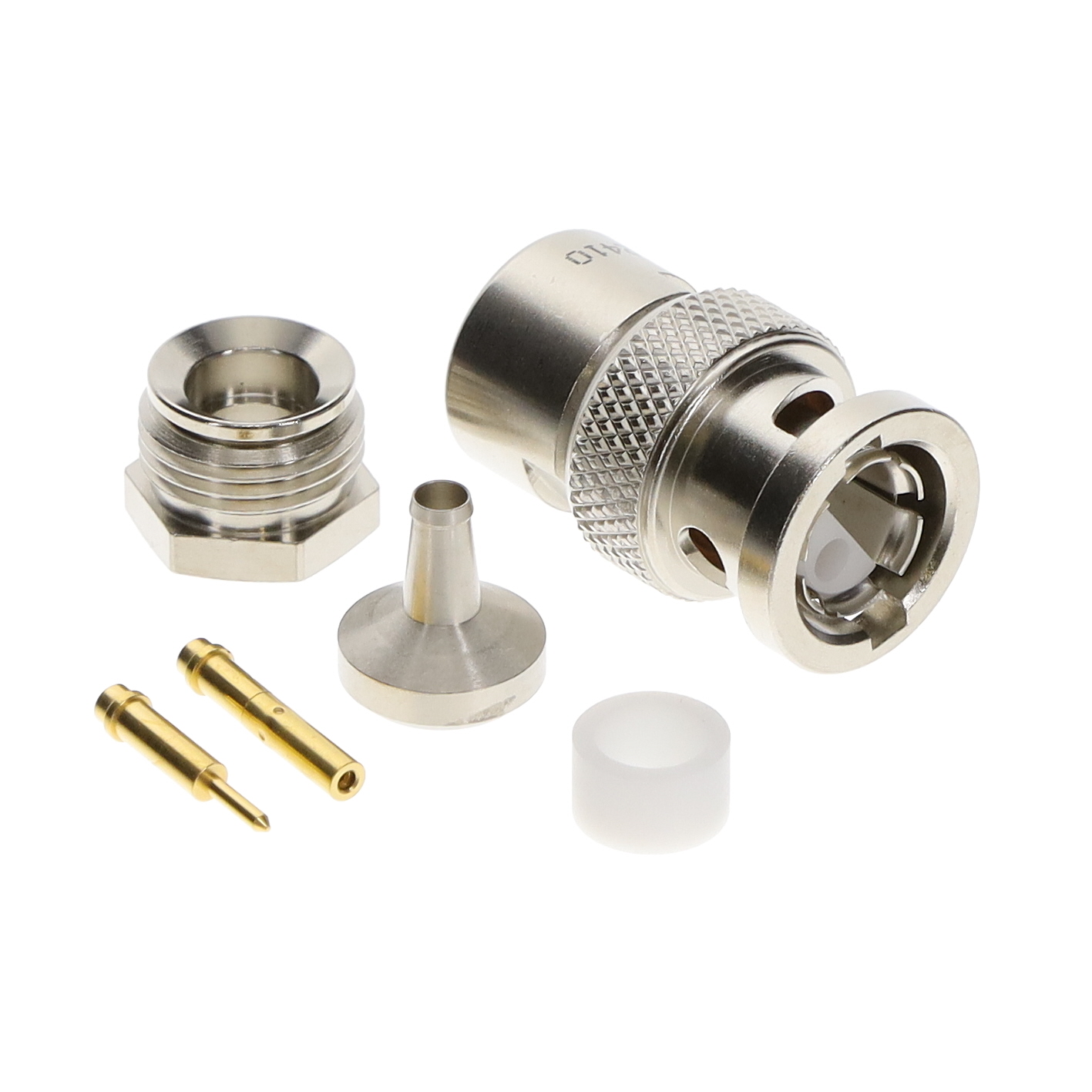

PL30-29
ActiveCinch Connectivity Solutions Trompeter
CONN BNC TWIN PLUG STR SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
PL30-29
ActiveCinch Connectivity Solutions Trompeter
CONN BNC TWIN PLUG STR SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PL30-29 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | TWC-124-1A, TWC-78-1 |
| Center Contact Plating | Gold |
| Connector Style | BNC, Twinaxial |
| Connector Type | Male Pin, Female Socket, Plug |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Wrench Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.05 | |
| 10 | $ 52.08 | |||
| 25 | $ 47.34 | |||
| 50 | $ 46.48 | |||
Description
General part information
PL30 Series
BNC, Twinaxial Connector Plug, Female Socket and Male Pin Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
