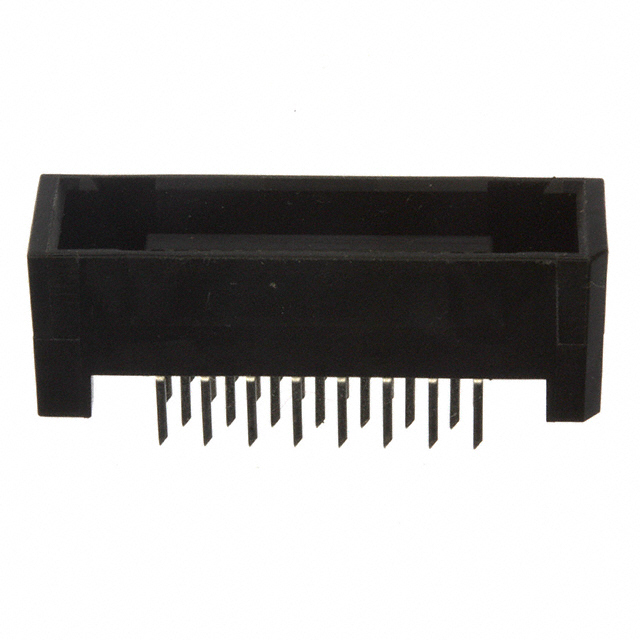

TX25-30P-8ST-N1E

Active

JAE Electronics

CONN PLUG 30POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 30POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish	Number of Positions	Number of Rows
JAE Electronics TX25-30P-8ST-N1E	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	0.441 in	11.2 mm	14 mm 18 mm 20 mm	Gold	30	2
JAE Electronics TX25-30P-LT-N1E	Through Hole Right Angle	0.05 in	1.27 mm	4 Áin	0.1 Ám	0.354 in	9 mm		Gold	30	2
JAE Electronics TX25-30P-12ST-N1	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	0.598 in	15.2 mm	18 mm 22 mm 24 mm	Gold	30	2
JAE Electronics TX25-30P-12ST-N1E	Through Hole	0.05 in	1.27 mm	4 Áin	0.1 Ám	0.598 in	15.2 mm	18 mm 22 mm 24 mm	Gold	30	2
JAE Electronics TX25-30P-LT-H1E	Through Hole Right Angle	0.05 in	1.27 mm	4 Áin	0.1 Ám	0.354 in	9 mm		Gold	30	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 0.88

General part information

30 Position Connector Plug, Center Strip Contacts Through Hole Gold
