1955620

Active

Phoenix Contact

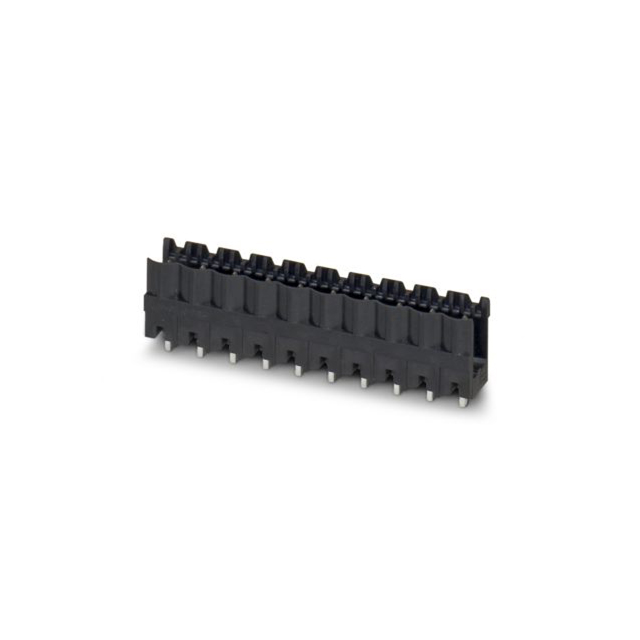

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1955620

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Contact Tail Length	2.6 mm
Current - IEC	12 A
Current - UL	10 A
Features	Pick and Place Cap
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header

Part	Insulation Height	Insulation Height	Type	Number of Levels	Number of Positions	Pitch [x]	Pitch [x]	Current - IEC	Voltage - IEC	Positions Per Level	Current - UL	Features	Voltage - UL	Mounting Type	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Material Flammability Rating	Color	Header Orientation	Housing Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
Phoenix Contact 1955620	0.472 in	12 mm	Header Male Pins Shrouded (2 Side)	1	12	0.2 in	5.08 mm	12 A	400 V	12	10 A	Pick and Place Cap	300 V	Through Hole	0.102 in	2.6 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder
Phoenix Contact 1955536	0.472 in	12 mm	Header Male Pins Shrouded (2 Side)	1		0.2 in	5.08 mm	12 A	400 V	3	10 A	Pick and Place Cap	300 V	Through Hole	0.102 in	2.6 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder
Phoenix Contact 1837459	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	1	11	0.197 in	5 mm	12 A	320 V	11	16 A	Mating Flange	300 V	Through Hole	0.079 in	2 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder	100 °C	-40 °C	Copper Alloy
