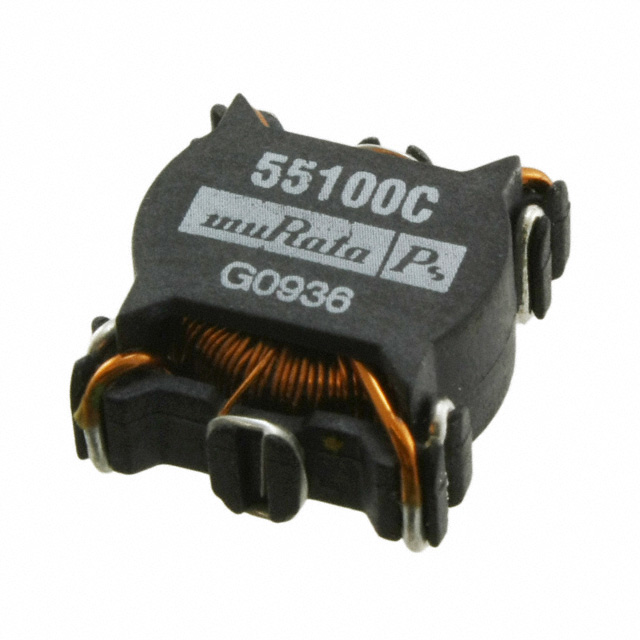

55100C

Obsolete

Murata Power Solutions Inc.

CURR SENSE XFMR 1:1:100 15A SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CURR SENSE XFMR 1:1:100 15A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	55100C

DC Resistance (DCR)	2.3 mOhm, 850 mOhm
Frequency Range [Max]	500 kHz
Frequency Range [Min]	50 kHz
Height - Seated (Max)	7.1 mm
Height - Seated (Max) [Max]	0.28 in
Inductance	14.8 mH
Mounting Type	Surface Mount
Size / Dimension [x]	12.6 mm
Size / Dimension [x]	0.496 in
Size / Dimension [y]	14.6 mm
Size / Dimension [y]	0.575 in
Turns Ratio - Primary:Secondary [x]	1
Turns Ratio - Primary:Secondary [y]	1
Turns Ratio - Primary:Secondary [z]	100
Type	Invasive
Weight	0.06 oz
Weight	1.71 g

Part	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Weight	Weight	Inductance	Frequency Range [Max]	Frequency Range [Min]	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Turns Ratio - Primary:Secondary [z]	Turns Ratio - Primary:Secondary [y]	Turns Ratio - Primary:Secondary [x]	DC Resistance (DCR)	Current Rating (Amps)
Murata Power Solutions Inc. 55050C	50	1	1	12.6 mm	0.496 in	14.6 mm	0.575 in	Surface Mount	0.06 oz	1.71 g	3.8 mH	500 kHz	50 kHz	Invasive	0.28 in	7.1 mm
Murata Power Solutions Inc. 55200C				12.6 mm	0.496 in	14.6 mm	0.575 in	Surface Mount	0.06 oz	1.71 g	60 mH	500 kHz	50 kHz	Invasive	0.28 in	7.1 mm	200	1	1	2.3 mOhm 3.6 Ohm
Murata Power Solutions Inc. 55100C-R				14.6 mm	0.575 in	12.6 mm	0.496 in	Surface Mount	0.004 lb	1.7 g	14.8 mH	500 kHz	50 kHz	Invasive	0.28 in	7.1 mm	100	1	1	2.3 mOhm 850 mOhm	15 A
Murata Power Solutions Inc. 55100C				12.6 mm	0.496 in	14.6 mm	0.575 in	Surface Mount	0.06 oz	1.71 g	14.8 mH	500 kHz	50 kHz	Invasive	0.28 in	7.1 mm	100	1	1	2.3 mOhm 850 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1:1:100 Current Sense Transformer 50kHz ~ 500kHz 2.3mOhm Primary, 850mOhm Secondary 14.8 mH Surface Mount
