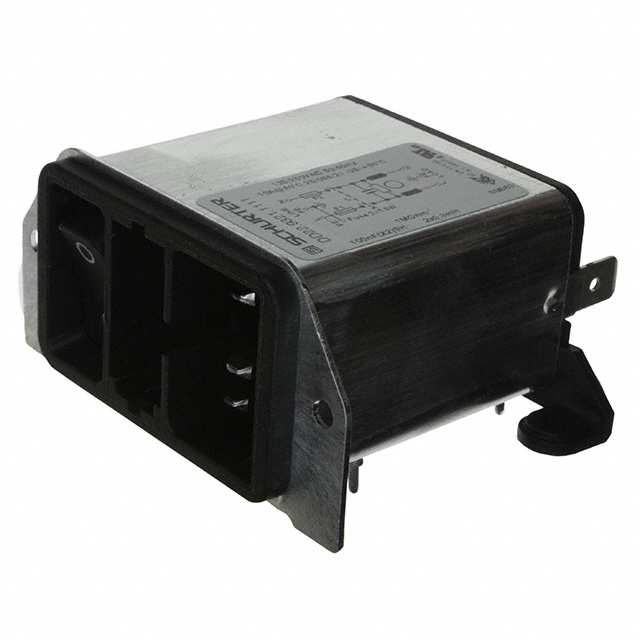

DD22.9321.1111

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD22.9321.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness	3 mm
Panel Thickness	0.118 in
Switch Features	Switch On-Off
Termination	Solder, Quick Connect - 0.250" (6.3mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Fuse Holder, Drawer	Current Rating - Filter	Panel Thickness	Panel Thickness	Approval Agency	Accomodates a Fuse	Current Rating - Appliance Inlet	Mounting Type	Connector Style	Termination	Voltage Rating - Appliance Inlet	Switch Features	Filter Type	Material Flammability Rating	Ingress Protection
SCHURTER Inc. DD22.9321.1111	Receptacle Male Blades - Module	Drawer Sold Separate	10 A	3 mm	0.118 in	cULus ENEC		10 A	Panel Mount Flange Through Hole Right Angle	IEC 320-C14	Solder Quick Connect - 0.250" (6.3mm)	250 VAC	Switch On-Off	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 31.98

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
