Technical Specifications
Parameters and characteristics for this part
| Specification | RPA50S-483.3SW/P |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 54 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Sixteenth Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.8 mm |
| Size / Dimension [z] | 9.3 mm |
| Size / Dimension [z] | 0.37 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

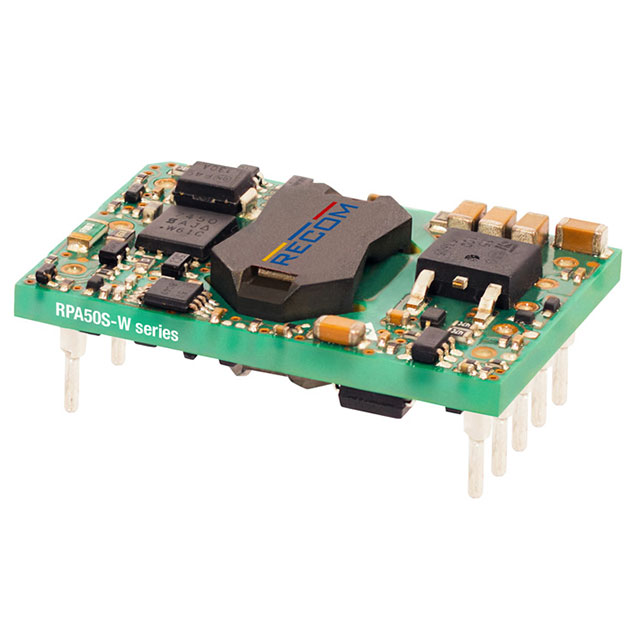

RPA50S-483.3 Series
Isolated DC/DC Converters - Through Hole 50W 18-75Vin 3.3Vout 15A
