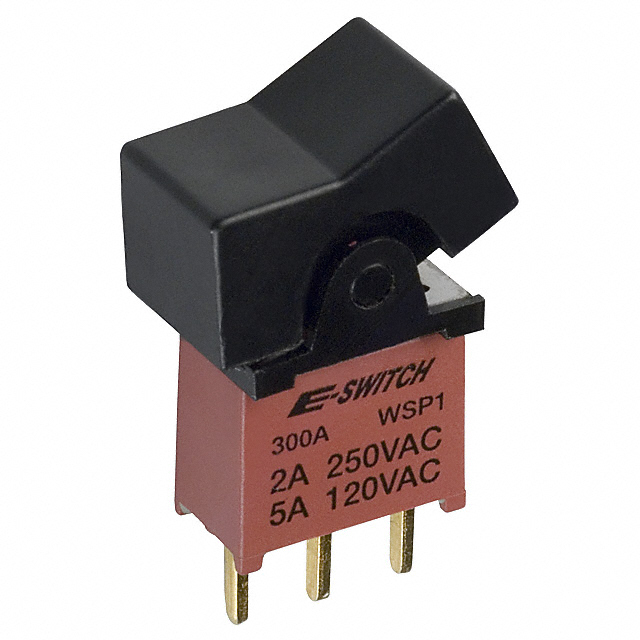

300AWSP1J1BLKM2RE

Active

E-Switch

SWITCH ROCKER SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

300AWSP1J1BLKM2RE

Active

E-Switch

SWITCH ROCKER SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300AWSP1J1BLKM2RE

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

300AWSP1 Series

Part	Current Rating (Amps)	Circuit	Termination Style	Color - Actuator/Cap	Features	Voltage Rating - AC	Voltage Rating - DC	Actuator Marking	Electrical Life	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
E-Switch 300AWSP1J3BLKVS21QE	5 A	SPDT	PC Pin	Black	Epoxy Sealed Terminals	120 V	28 V	No Marking	30000 Cycles	Through Hole	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1J5BLKM7RE	0.4 VA	SPDT	PC Pin	Black	Epoxy Sealed Terminals	20 V	20 V	No Marking	30000 Cycles	Right Angle Through Hole Vertical	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1J1BLKM6RE	0.4 VA	SPDT	PC Pin	Black	Epoxy Sealed Terminals	20 V	20 V	No Marking	30000 Cycles	Through Hole Right Angle	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1J1BLKM2RE	0.4 VA	SPDT	PC Pin	Black	Epoxy Sealed Terminals	20 V	20 V	No Marking	30000 Cycles	Through Hole	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1J6BLKVS3RE	0.4 VA	SPDT	PC Pin	Black	Epoxy Sealed Terminals	20 V	20 V	No Marking	30000 Cycles	Through Hole	Paddle	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1R2BLKM1QE	5 A	SPDT	Solder Lug	Black	Epoxy Sealed Terminals	120 V	28 V	No Marking	30000 Cycles	Flange Panel Mount	Paddle	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On	7.2 mm	13.14 mm
E-Switch 300AWSP1J5VS2QE	5 A	SPDT	PC Pin	Black	Epoxy Sealed Terminals	120 V	28 V	No Marking	30000 Cycles	Through Hole	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1J1BLKM7QE	5 A	SPDT	PC Pin	Black	Epoxy Sealed Terminals	120 V	28 V	No Marking	30000 Cycles	Right Angle Through Hole Vertical	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On
E-Switch 300AWSP1R1M1RE	0.4 VA	SPDT	Solder Lug	Black	Epoxy Sealed Terminals	20 V	20 V	No Marking	30000 Cycles	Flange Panel Mount	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On	7.2 mm	13.14 mm
E-Switch 300AWSP1J1BLKM2QE	5 A	SPDT	PC Pin	Black	Epoxy Sealed Terminals	120 V	28 V	No Marking	30000 Cycles	Through Hole	Concave (Standard V)	-30 ░C	85 °C	IP67 - Dust Tight Waterproof	On-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.57

Description

General part information

300AWSP1 Series

Rocker Switch SPDT 0.4VA (AC/DC) 20 V Through Hole
