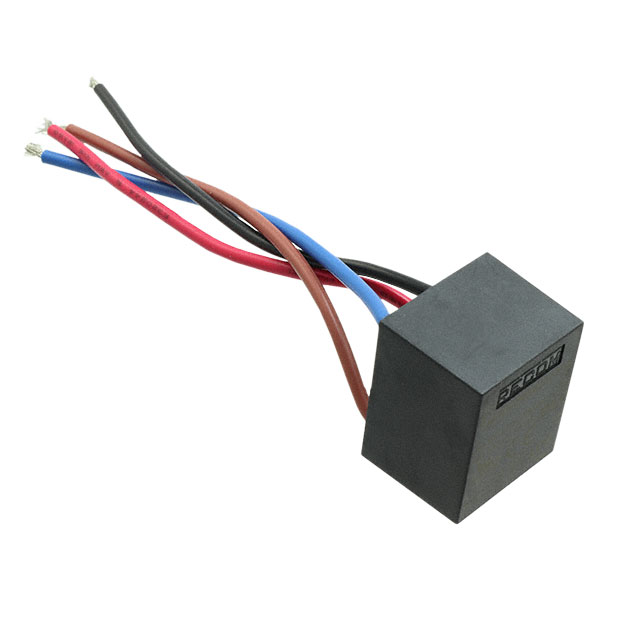

RAC05-24SK/277/W

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 5 W, 24 V, 210 MA

Search across all available documentation for this part.

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 5 W, 24 V, 210 MA

Technical Specifications

Parameters and characteristics for this part

Specification	RAC05-24SK/277/W

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	210 mA
Efficiency	84 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	5 W
Size / Dimension [x]	31.7 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	26.7 mm
Size / Dimension [y]	1.05 in
Size / Dimension [z]	21.8 mm
Size / Dimension [z]	0.86 in
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

AC/DC Power Modules 5W 85-264Vin 15Vout 333mA 1x1in

Part	Features	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Type	Voltage - Isolation	Approval Agency	Power (Watts)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Mounting Type	Line Regulation	Weight	Weight	Package / Case	Load Regulation	Current - Output (Max) [Max]
RECOM Power RAC05-24SK/C14	Universal Input	210 mA	2.17 "	21 mm	0.83 in	1.12 in	55.1 mm	28.5 mm	24 V	Enclosed	3000 V	CB CE cURus FCC	5 W	ITE (Commercial)	-25 °C	70 °C	84 %	85 VAC 120 VDC	264 VAC 370 VDC	1
RECOM Power RAC05-3.3SK/C14	Universal Input	1.51 A	2.17 "	21 mm	0.83 in	1.12 in	55.1 mm	28.5 mm	3.3 V	Enclosed	3000 V	CB CE cURus FCC	5 W	ITE (Commercial)	-25 °C	70 °C	76 %	85 VAC 120 VDC	264 VAC 370 VDC	1
RECOM Power RAC05-24SK/277/W	Universal Input	210 mA	1.25 "	21.8 mm	0.86 in	1.05 in	31.7 mm	26.7 mm	24 V	Enclosed	3000 V	CB CE cURus	5 W	Household Appliances ITE (Commercial)	-40 °C	85 °C	84 %	85 VAC 120 VDC	305 VAC 430 VDC	1	Chassis Mount
RECOM Power RAC05-12SK/C14	Universal Input	420 mA	2.17 "	21 mm	0.83 in	1.12 in	55.1 mm	28.5 mm	12 V	Enclosed	3000 V	CB CE cURus FCC	5 W	ITE (Commercial)	-25 °C	70 °C	81 %	85 VAC 120 VDC	264 VAC 370 VDC	1
RECOM Power RAC05-24SK	Universal Input		1 in	16.5 mm	0.65 in	25.4 mm	25.4 mm	25.4 mm	24 V	Enclosed		CE cURus	5 W	ITE (Commercial)	-25 °C	70 °C	84 %	85 VAC 120 VDC	264 VAC 370 VDC	1	Through Hole	0.5 %	0.044 lb	19.96 g	5-DIP Module	1 %	210 mA
