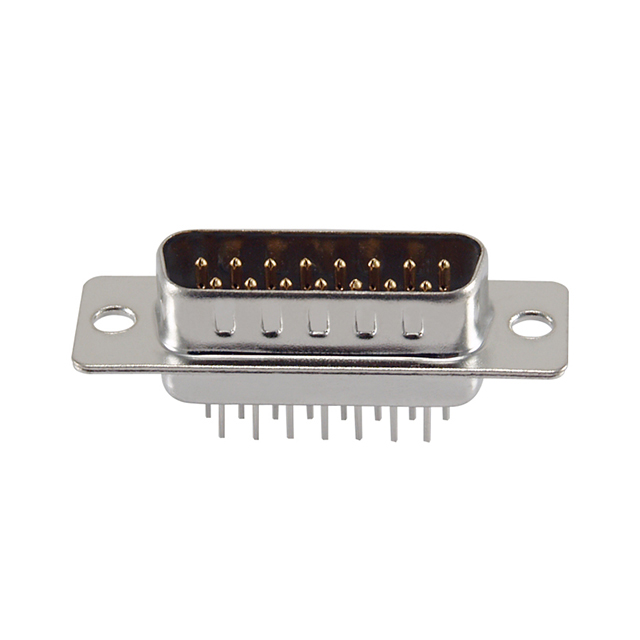

K85X-AD-15P

Active

Kycon, Inc.

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	K85X-AD-15P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	30 VDC

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Mounting Type	Number of Rows	Number of Positions	Contact Material	Contact Finish	Dielectric Material	Material Flammability Rating	Voltage Rating	Shell Size, Connector Layout	Contact Form	Connector Type	Connector Style	Color	Contact Finish Thickness
Kycon, Inc. K85X-AD-15P-BR30	2 A	105 ░C	-55 °C	Nickel Plated Steel	Solder	Signal	0.76 Ám	30 Áin	Board Lock Grounding Indents	4-40 Board Side	Through Hole	2	15	Brass	Gold	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	30 VDC	2	Stamped	Male Pins Plug	D-Sub	Black
Kycon, Inc. K85X-AD-15P-30	2 A	105 ░C	-55 °C	Nickel Plated Steel	Solder	Signal	0.76 Ám	30 Áin	Grounding Indents	Housing/Shell (Unthreaded)	Through Hole	2	15	Brass	Gold	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	30 VDC	2	Stamped	Male Pins Plug	D-Sub	Black
Kycon, Inc. K85X-AD-15P	2 A	105 ░C	-55 °C	Nickel Plated Steel	Solder	Signal			Grounding Indents	Housing/Shell (Unthreaded)	Through Hole	2	15	Brass	Gold	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	30 VDC	2	Stamped	Male Pins Plug	D-Sub	Black	Flash
Kycon, Inc. K85X-AD-15S-R	2 A	105 ░C	-55 °C	Nickel Plated Steel	Solder	Signal				Housing/Shell (Unthreaded)	Through Hole	2	15	Brass	Gold	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	30 VDC	2	Stamped	Receptacle Female Sockets	D-Sub	Black	Flash
