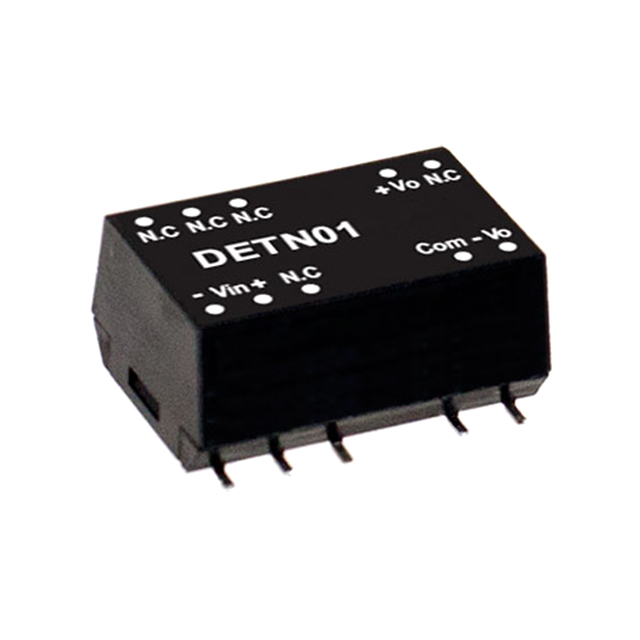

DETN01L-15

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 1W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Type	Voltage - Input (Min) [Min]	Efficiency	Number of Outputs	Voltage - Output 2	Voltage - Isolation	Voltage - Output 1	Features	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max)
MEAN WELL USA Inc. DETN01N-15	10 Leads	12-SMD Module	Isolated Module	21.6 V	78 %	2	-15 V	3000 V	15 V	SCP	ITE (Commercial)	Surface Mount	-40 °C	90 °C	26.4 V	34 mA	10.7 mm	7.1 mm	15.2 mm	0.42 "	0.28 "	0.6 in
MEAN WELL USA Inc. DETN01L-15	10 Leads	12-SMD Module	Isolated Module	4.5 V	80 %	2	-15 V	3000 V	15 V	SCP	ITE (Commercial)	Surface Mount	-40 °C	90 °C	5.5 V	34 mA	10.7 mm	7.1 mm	15.2 mm	0.42 "	0.28 "	0.6 in
MEAN WELL USA Inc. DETN01L-05	10 Leads	12-SMD Module	Isolated Module	4.5 V	78 %	2	-5 V	3000 V	5 V	SCP	ITE (Commercial)	Surface Mount	-40 °C	90 °C	5.5 V	100 mA	10.7 mm	7.1 mm	15.2 mm	0.42 "	0.28 "	0.6 in	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 4.5V - 5.5V Input
