1002-080-SS
ActiveRAF Electronic Hardware
PANEL SCREW RETAINER - STYLE A
Deep-Dive with AI
Search across all available documentation for this part.
1002-080-SS
ActiveRAF Electronic Hardware
PANEL SCREW RETAINER - STYLE A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002-080-SS |
|---|---|
| Between Board Height | 7.94 mm |
| Between Board Height | 0.313 " |
| Diameter - Inside [diameter] | 0.1875 in |
| Diameter - Inside [diameter] | 0.188 in |
| Diameter - Inside [diameter] | 4.78 mm |
| Diameter - Outside [diameter] | 0.313 in |
| Diameter - Outside [diameter] | 7.94 mm |
| Gender | Swage, Female |
| Length - Overall | 7.94 mm |
| Length - Overall [x] | 0.313 in |
| Material | Stainless Steel |
| Screw, Thread Size | #8-32 |
| Threaded/Unthreaded | Threaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.66 | |
| 5 | $ 3.10 | |||
| 10 | $ 2.91 | |||
| 25 | $ 2.68 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.40 | |||
| 250 | $ 2.25 | |||
| 500 | $ 2.14 | |||
| 1000 | $ 2.05 | |||
Description
General part information
1002-080 Series

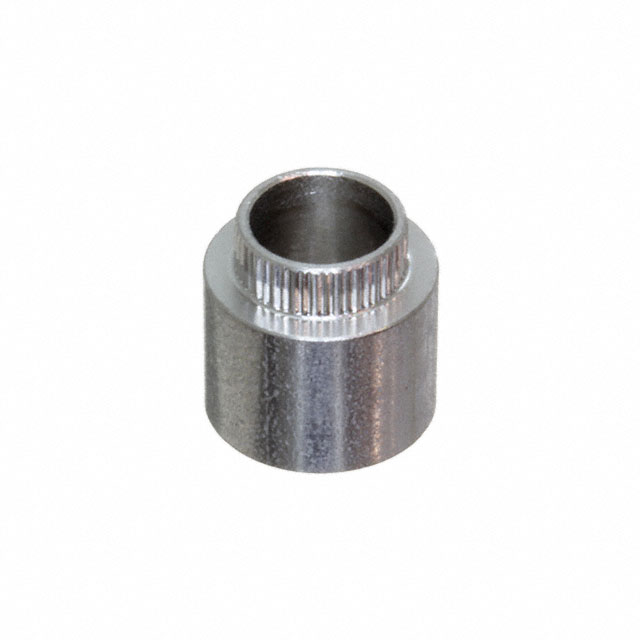

Round Spacer Threaded #8-32 Stainless Steel 0.313" (7.94mm)
Documents
Technical documentation and resources
No documents available
