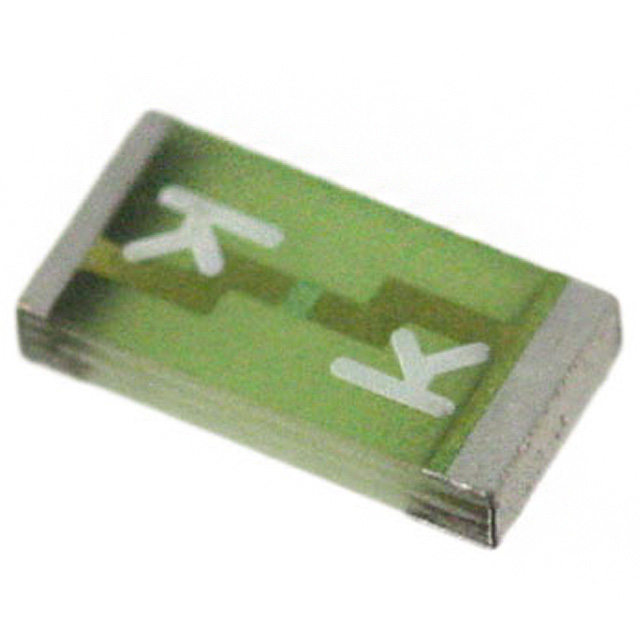

3413.0218.24

Active

SCHURTER Inc.

FUSE BRD MT 1.6A 32VAC 63VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MT 1.6A 32VAC 63VDC

Technical Specifications

Parameters and characteristics for this part

Specification	3413.0218.24

Approval Agency	cURus, VDE
Breaking Capacity @ Rated Voltage	63 A
Current Rating (Amps)	1.6 A
DC Cold Resistance	0.0505 Ohms
Fuse Type	Board Mount
Melting I˛t	0.33
Mounting Type	Surface Mount
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Response Time	Fast Blow
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Size / Dimension [z]	0.6 mm
Size / Dimension [z]	0.024 "
Voltage Rating - AC	32 V
Voltage Rating - DC	63 VDC

"USI 1206, 4 A, 63 VDC, 32 VAC, QUICK-ACTING F, 500 PCS. IN BLISTER TAPE [W.12MM AND P1: 4MM] REEL [18CM] PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Part	Voltage Rating - AC	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	DC Cold Resistance	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Melting I˛t	Approval Agency	Fuse Type	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Melting I²t
SCHURTER Inc. 3413.0213.22	32 V	Fast Blow	90 °C	-55 °C	0.33 Ohms	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1206 (3216 Metric)	0.041	cURus VDE	Board Mount	Surface Mount	63 VDC	0.5 A	63 A
SCHURTER Inc. 3413.0218.24	32 V	Fast Blow	90 °C	-55 °C	0.0505 Ohms	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1206 (3216 Metric)	0.33	cURus VDE	Board Mount	Surface Mount	63 VDC	1.6 A	63 A
SCHURTER Inc. 3413.0213.24	32 V	Fast Blow	90 °C	-55 °C	0.33 Ohms	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1206 (3216 Metric)		cURus VDE	Board Mount	Surface Mount	63 VDC	0.5 A	63 A	0.041
SCHURTER Inc. 3413.0218.22	32 V	Fast Blow	90 °C	-55 °C	0.0505 Ohms	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1206 (3216 Metric)		cURus VDE	Board Mount	Surface Mount	63 VDC	1.6 A	63 A	0.33
SCHURTER Inc. 3413.0222.24	32 V	Fast Blow	90 °C	-55 °C	12.5 mOhms	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1206 (3216 Metric)		cURus VDE	Board Mount	Surface Mount	63 VDC	4 A	63 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.83
	Digi-Reel®	1	$ 0.83
	Tape & Reel (TR)	5000	$ 0.31

General part information

"USI 1206, 4 A, 63 VDC, 32 VAC, QUICK-ACTING F, 500 PCS. IN BLISTER TAPE [W.12MM AND P1: 4MM] REEL [18CM] PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Technical documentation and resources
