Q-0102U00012.5M

Active

Amphenol Custom Cable

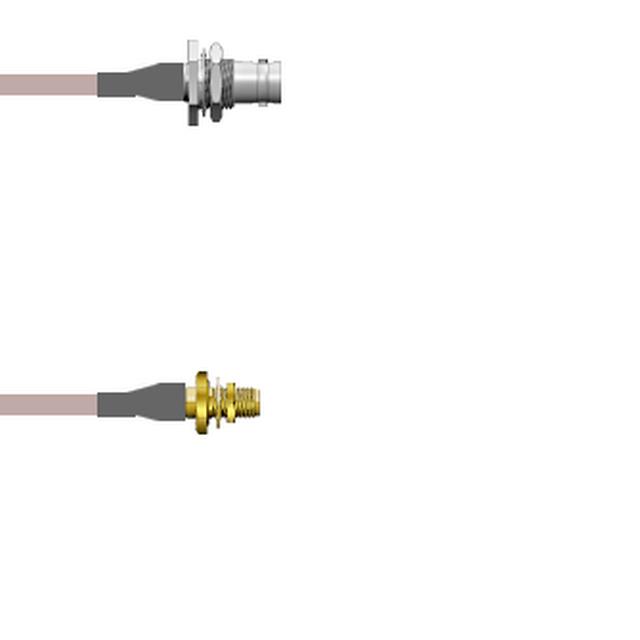

CBL ASSY BNC-SMA JACK-JACK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0102U00012.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0102U00012.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0102U0 Series

Part	2nd Connector Mounting Feature	1st Contact Gender	Frequency - Max [Max]	Length	Length	Length	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Features	Cable Type	Overall Impedance	1st Connector Mounting Type	Color	Style	2nd Connector	1st Connector Mounting Feature	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0102U00012.5M	Bulkhead - Front Side Nut	Female	4 GHz	8.2 '	98.4 in	2.5 m	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001003M	Bulkhead - Front Side Nut	Female	4 GHz	9.8 '	118.1 in	3 m	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U00010.5M	Bulkhead - Front Side Nut	Female	4 GHz		19.69 "	50 cm	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001018i	Bulkhead - Front Side Nut	Female	4 GHz				BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0102U0001002M	Bulkhead - Front Side Nut	Female	4 GHz	6.6 ft	78.7 in	2 m	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001.25M	Bulkhead - Front Side Nut	Female	4 GHz				BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut		250 mm	9.843 "
Amphenol Custom Cable Q-0102U0001060i	Bulkhead - Front Side Nut	Female	4 GHz	5 ft	5 '	1.5 m	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001036i	Bulkhead - Front Side Nut	Female	4 GHz		36 in	91.44 cm	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001006i	Bulkhead - Front Side Nut	Female	4 GHz		6 in	152.4 mm	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001001M	Bulkhead - Front Side Nut	Female	4 GHz	3.3 ft	39.4 in	1 m	BNC Jack	Female	Panel Mount	Shielded	RG-178	50 Ohms	Panel Mount	Copper	BNC to SMA	SMA Jack	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.96
		25	$ 80.93
		50	$ 74.90
		100	$ 69.73
		250	$ 65.43

Description

General part information

Q-0102U0 Series

Cable Assembly Coaxial BNC to SMA RG-178 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
