A16056-06

Active

Laird Technologies - Thermal Materials

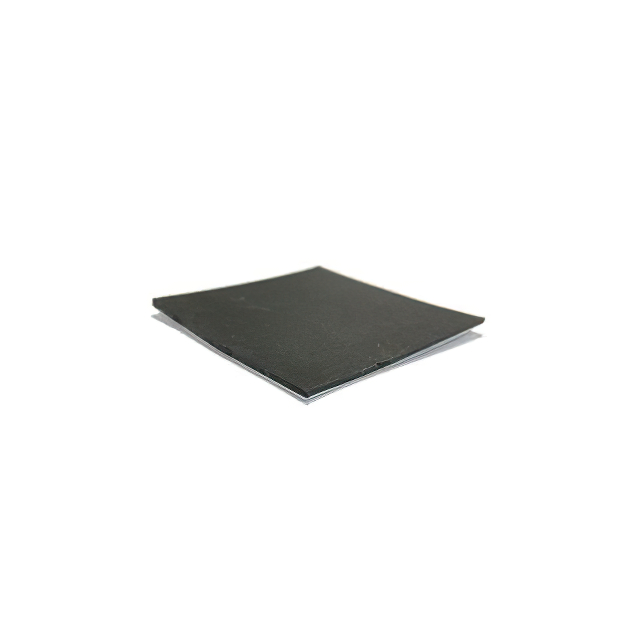

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Thermal Interface Solutions

A16056-06

Active

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

DocumentsDatasheet Thermal Interface Solutions

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A16056-06

Adhesive	Tacky - One Side
Color	Gray
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	3 W/m-K
Thickness	1.524 mm
Thickness	0.06 in
Type	Gap Filler Pad, Sheet

A16056 Series

Part	Thermal Conductivity	Outline [x]	Outline [y]	Thickness	Thickness	Adhesive	Color	Shelf Life	Shape	Type	Shelf Life Start	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A16056-02	3 W/m-K	228.6 mm	228.6 mm	0.508 mm	0.02 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-01	3 W/m-K	228.6 mm	228.6 mm			Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment	0.254 mm	0.01 in
Laird Technologies - Thermal Materials A16056-04	3 W/m-K	228.6 mm	228.6 mm	1.016 mm	0.04 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-08	3 W/m-K	228.6 mm	228.6 mm	80 mils	0.08 "	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-17	3 W/m-K	228.6 mm	228.6 mm	4.32 mm	0.17 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-16	3 W/m-K	228.6 mm	228.6 mm	4.06 mm	0.16 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-06	3 W/m-K	228.6 mm	228.6 mm	1.524 mm	0.06 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-20	3 W/m-K	228.6 mm	228.6 mm	200 mils	0.2 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-09	3 W/m-K	228.6 mm	228.6 mm	2.286 mm	0.09 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment
Laird Technologies - Thermal Materials A16056-18	3 W/m-K	228.6 mm	228.6 mm	4.57 mm	0.18 in	Tacky - One Side	Gray	24 Months	Square	Gap Filler Pad Sheet	Date of Shipment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 57.26

Description

General part information

A16056 Series

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - One Side

Documents

Technical documentation and resources

Datasheet

Thermal Interface Solutions

Datasheet
