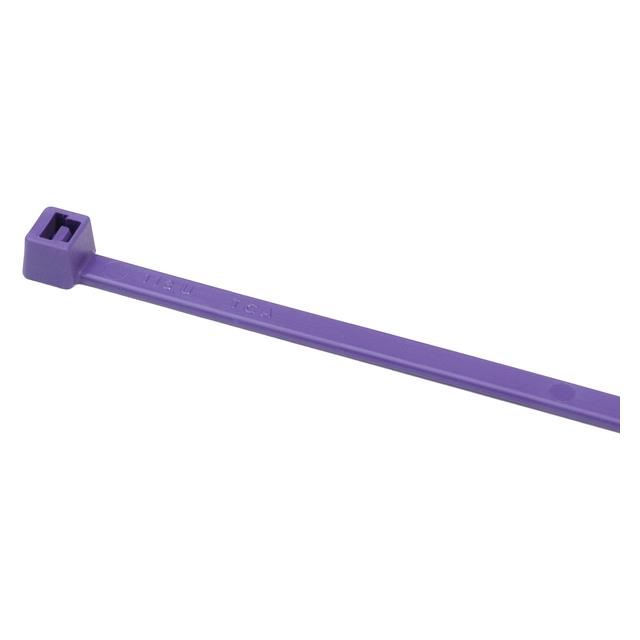

T50R7C2
ActiveHELLERMANNTYTON
CBL TIE LOCKING VIOL 50LB 7.95"
Deep-Dive with AI
Search across all available documentation for this part.
T50R7C2
ActiveHELLERMANNTYTON
CBL TIE LOCKING VIOL 50LB 7.95"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T50R7C2 |
|---|---|
| Bundle Diameter | 50 mm |
| Bundle Diameter | 1.97 in |
| Color | Violet |
| Length - Actual [x] | 202 mm |
| Length - Actual [x] | 0.663 ft |
| Length - Actual [x] | 7.95 " |
| Length - Approximate | 8 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 22.68 kg |
| Tensile Strength | 50 lbs |
| Width [y] | 0.181 in |
| Width [y] | 4.6 mm |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.33 | |
| 300 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 2500 | $ 0.21 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.19 | |||
Description
General part information
T50R7C Series
Standard, Locking Violet 1.97" (50.00mm) 0.181" (4.60mm) 50 lbs (22.68 kg)
