25630701RP2

Active

MH Connectors

25630701RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25630701RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25630701RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Number of Rows	Contact Type	Material Flammability Rating	Contact Material	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Connector Type	Termination	Number of Positions Loaded	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish - Post
MH Connectors 25630701RP2	7	Flash	2.54 µm	100 µin	-40 °C	105 ░C	Black	4.3 mm	0.169 "	Push-Pull	1	Female Socket	UL94 V-0	Phosphor Bronze	Through Hole	0.079 in	2 mm	Gold	Receptacle	Solder	All	Square	2.5 mm	0.098 in	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

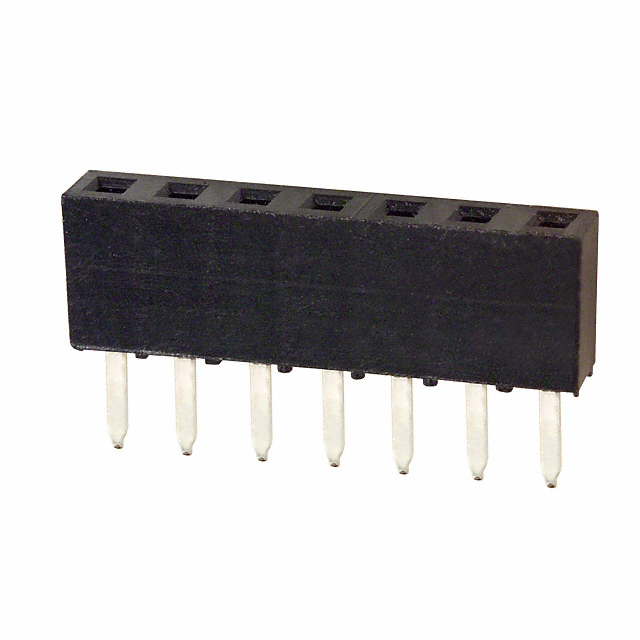

7 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
