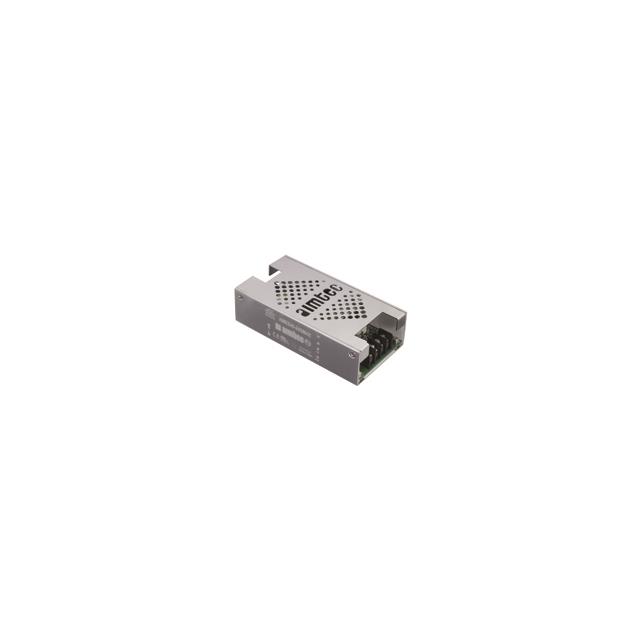

AMES40-24SMAZ
Activeaimtec
AC/DC CONVERTER 24V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMES40-24SMAZ
Activeaimtec
AC/DC CONVERTER 24V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMES40-24SMAZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 1.66 A |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 4.9 in |
| Size / Dimension [x] | 124.5 mm |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 35.1 mm |
| Size / Dimension [z] | 1.38 in |
| Standard Number | 60950-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 130 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMES40 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 130 ~ 370 VDC Input
