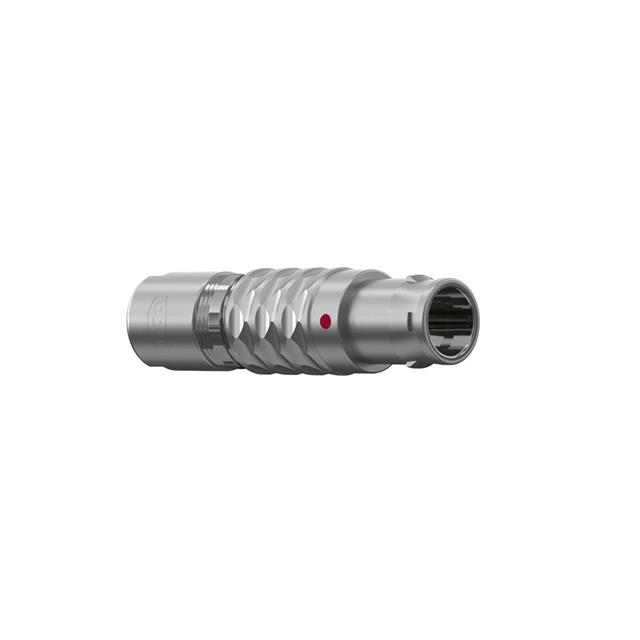

S13LAC-P18PJH0-1900

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	S13LAC-P18PJH0-1900

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [custom]	0.433 in, 0.469 in
Cable Opening [custom]	11 mm
Cable Opening [custom]	11.9 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Termination	Crimp
Voltage Rating	333 V

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Current Rating (Amps)	Color	Primary Material	Applications	Shell Size - Insert	Backshell Material, Plating	Fastening Type	Orientation	Connector Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Features	Shell Finish	Contact Material	Voltage Rating	Mounting Type	Ingress Protection	Shielding	Insert Material	Termination
ODU S13LAC-P22MFG0-1900	22 positions	-40 °C	120 °C	Brass	7.5 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	3	Brass Chrome over Nickel	Push-Pull	A	Male Pins Plug	Gold	0.433 in 0.469 in	11 mm	11.9 mm	Backshell	Chrome over Nickel	Brass	333 V	Free Hanging (In-Line)	IP50	Unshielded	Polyetheretherketone (PEEK)
ODU S13LAC-P30MFG0-1900	30	-40 °C	120 °C	Brass	7.5 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	3	Brass Chrome over Nickel	Push-Pull	A	Male Pins Plug	Gold	0.433 in 0.469 in	11 mm	11.9 mm	Backshell	Chrome over Nickel	Brass	300 VDC	Free Hanging (In-Line)	IP50	Unshielded	Polyetheretherketone (PEEK)
ODU S13LAC-P18PJH0-1900	18	-40 °C	120 °C	Brass	10 A	Silver	Metal	Industrial Medical Military Testing Equipment & Measurement	3	Brass Chrome over Nickel	Push-Pull	A	Male Pins Plug	Gold	0.433 in 0.469 in	11 mm	11.9 mm	Backshell	Chrome over Nickel	Brass	333 V	Free Hanging (In-Line)	IP50	Unshielded	Polyetheretherketone (PEEK)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Male Pins Crimp
