21-20-72

Active

Cinch Connectivity Solutions Trompeter

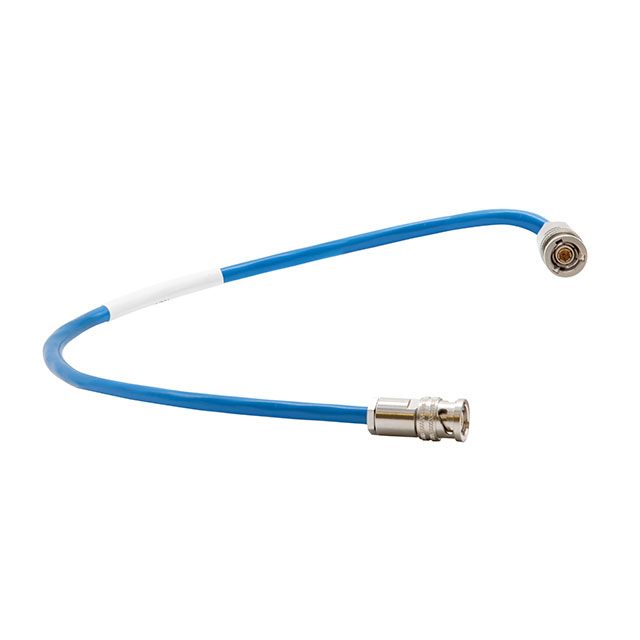

PL75 / PL75, TWC-78-1 CABLE, 72 INCHES

Deep-Dive with AI

Search across all available documentation for this part.

21-20-72

Active

Cinch Connectivity Solutions Trompeter

PL75 / PL75, TWC-78-1 CABLE, 72 INCHES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	21-20-72

1st Connector	TRB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TRB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Twinaxial
Color	Blue
Features	Shielded
Frequency - Max [Max]	500 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	78 Ohms
Qualification	MIL-STD-1553B
Style	TRB to TRB

21-20 Series

Part	Style	1st Connector Mounting Type	Features	1st Contact Gender	Qualification	2nd Connector	Cable Type	Overall Impedance	Color	2nd Contact Gender	2nd Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]	1st Connector	Length [x]	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter 21-20-M3.5	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	11.5 ft	3.5 m	137.8 "	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-24	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)		609.6 mm	24 "	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-72	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	6 ft	1.8 m	72 in	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-M4.5	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)				500 GHz	TRB Plug	14.8 ft	177.2 in	4.5 m
Cinch Connectivity Solutions Trompeter 21-20-240	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	20 ft	6.1 m	20 ft	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-60	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	5 ft	1.5 m	5 '	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-120	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	10 '	3 m	10 ft	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-M2.0	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)	6.6 ft	2 m	78.7 in	500 GHz	TRB Plug
Cinch Connectivity Solutions Trompeter 21-20-36	TRB to TRB	Free Hanging (In-Line)	Shielded	Male	MIL-STD-1553B	TRB Plug	Twinaxial	78 Ohms	Blue	Male	Free Hanging (In-Line)		91.44 cm	36 in	500 GHz	TRB Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 199.17
		10	$ 155.82
		25	$ 142.14
		50	$ 132.92
Newark	Each	1	$ 163.53
		25	$ 150.06
		100	$ 138.37

Description

General part information

21-20 Series

Cable Assembly Coaxial TRB to TRB Twinaxial 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
