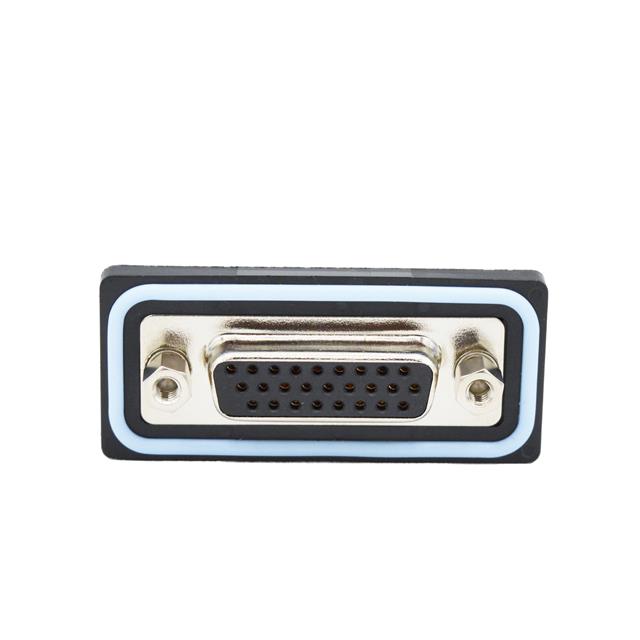

HDF-R26-213L011

Active

MH Connectors

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-R26-213L011

Active

MH Connectors

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDF-R26-213L011

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

HDF-R26 Series

Part	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions	Connector Style	Number of Rows	Dielectric Material	Ingress Protection	Flange Feature	Material Flammability Rating	Contact Type	Contact Material	Shell Material, Finish	Color	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Contact Finish Thickness
MH Connectors HDF-R26-113L462	Male Pins Plug	2	(DA A) High Density	0.76 Ám	30 Áin	Board Lock Grounding Indents Mounting Brackets	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole
MH Connectors HDF-R26-113L012	Male Pins Plug	2	(DA A) High Density	0.76 Ám	30 Áin	Grounding Indents	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole
MH Connectors HDF-R26-213L011	Receptacle Female Sockets	2	(DA A) High Density				26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole	Flash
MH Connectors HDF-R26-113L461	Male Pins Plug	2	(DA A) High Density			Board Lock Grounding Indents Mounting Brackets	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole	Flash
MH Connectors HDF-R26-213L461	Receptacle Female Sockets	2	(DA A) High Density			Board Lock Mounting Brackets	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole	Flash
MH Connectors HDF-R26-213L012	Receptacle Female Sockets	2	(DA A) High Density	0.76 Ám	30 Áin		26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole
MH Connectors HDF-R26-113L011	Male Pins Plug	2	(DA A) High Density			Grounding Indents	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole	Flash
MH Connectors HDF-R26-213L462	Receptacle Female Sockets	2	(DA A) High Density	0.76 Ám	30 Áin	Board Lock Mounting Brackets	26	D-Sub High Density	3	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Brass	Nickel Plated Steel	Black	Solder	Gold	-25 °C	85 °C	3 A	Panel Mount Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.74
		10	$ 10.58
		25	$ 9.57
		40	$ 9.45

Description

General part information

HDF-R26 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
