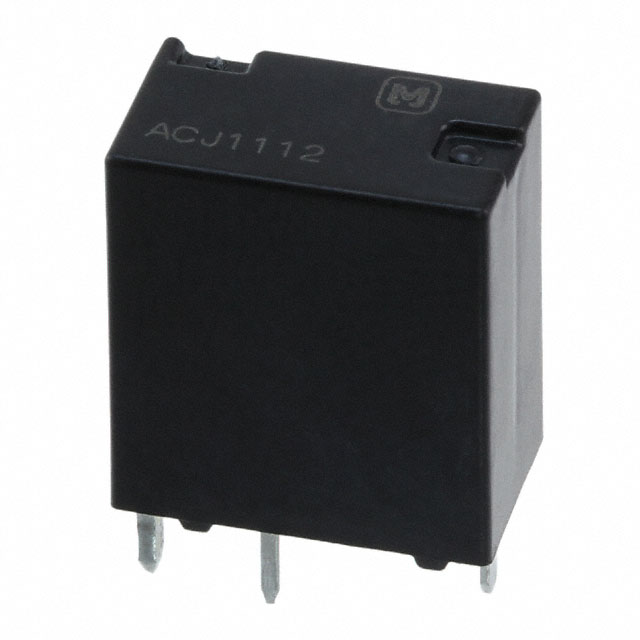

ACJ1112
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPDT 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ACJ1112
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPDT 20A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACJ1112 |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 800 mW |
| Coil Resistance | 180 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 20 A |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 0.8 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.79 | |
| 10 | $ 2.61 | |||
| 25 | $ 2.32 | |||
| 70 | $ 2.21 | |||
| 140 | $ 2.09 | |||
| 280 | $ 1.86 | |||
| 560 | $ 1.74 | |||
| 1050 | $ 1.63 | |||
| 5040 | $ 1.57 | |||
Description
General part information
ACJ111 Series
RELAY AUTOMOTIVE SPDT 20A 12V
Documents
Technical documentation and resources
No documents available
