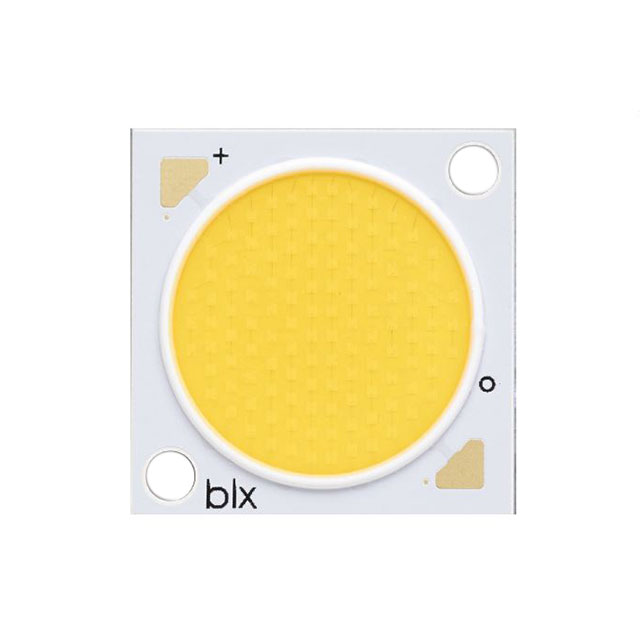

BXRE-20B4001-C-73

Active

BRIDGELUX

LED COB V18 WARM WHT SQU 2000K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V18 WARM WHT SQU 2000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-20B4001-C-73

CCT (K)	2000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	65
Current - Max [Max]	2.34 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	19.2 mm
Lumens/Watt @ Current - Test	133 lm/W
Luminous Flux @ Current/Temperature	5302 lm
Size / Dimension [x]	24 mm
Size / Dimension [y]	24 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	34 V

Part	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	CCT (K)	Viewing Angle	Type	Lens Type	Color	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Configuration	Current - Max [Max]	Temperature - Test	Current - Test	Lumens/Watt @ Current - Test
BRIDGELUX BXRE-20B6501-C-73	9791 lm	50.7 V	2000 K	120 °	Chip On Board (COB)	Flat	Warm White	22.6 mm	65	28 mm	28 mm	1.7 mm	Square	2.88 A	85 °C	1.44 A
BRIDGELUX BXRE-20B4001-C-73	5302 lm	34 V	2000 K	120 °	Chip On Board (COB)	Flat	Warm White	19.2 mm	65	24 mm	24 mm	1.7 mm	Square	2.34 A	85 °C		133 lm/W
BRIDGELUX BXRE-20B6501-D-73	6405 lm	33.4 V	2000 K	120 °	Chip On Board (COB)	Flat	Warm White	22.6 mm	65	28 mm	28 mm	1.7 mm	Square	2.8 A	85 °C		137 lm/W
BRIDGELUX BXRE-20B2001-B-73	2038 lm	33.9 V	2000 K	120 °	Chip On Board (COB)	Flat	Warm White	14 mm	65	19 mm	19 mm	1.7 mm	Square	900 mA	85 °C	450 mA
BRIDGELUX BXRE-20B2001-C-73	2853 lm	33.9 V	2000 K	120 °	Chip On Board (COB)	Flat	Warm White	14 mm	65	19 mm	19 mm	1.7 mm	Square	1.26 A	85 °C	630 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 9.07

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Array White, Warm Square
