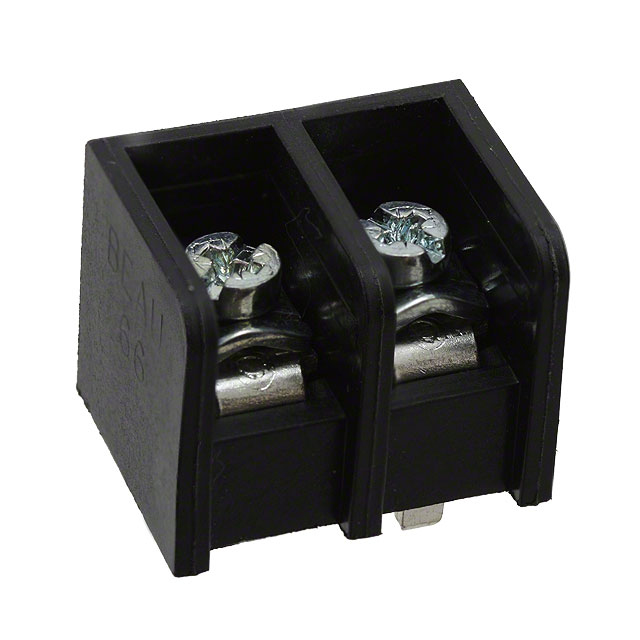

0386608802

Obsolete

Molex

CONN BARRIER STRIP 2CIRC 0.5"

Deep-Dive with AI

Search across all available documentation for this part.

0386608802

Obsolete

Molex

CONN BARRIER STRIP 2CIRC 0.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0386608802

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	45 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	12.7 mm
Pitch [x]	0.5 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Yellow Chromate
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	600 V
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	8 AWG

038660 Series

Part	Number of Rows	Voltage Rating	Bottom Termination	Pitch [x]	Pitch [x]	Current Rating (Amps)	Terminal Block Type	Material - Insulation	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Finish	Top Termination	Barrier Type	Color	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Mounting Type	Number of Circuits	Features
Molex 0386608806	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	6	Through Hole	6
Molex 0386607803	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Thermoplastic	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	3	Through Hole	3
Molex 0386608814	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	14	Through Hole	14
Molex 0386607806	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Thermoplastic	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	6	Through Hole	6
Molex 0386608802	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	2	Through Hole	2
Molex 0386608809	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	9	Through Hole
Molex 0386608804	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	4	Through Hole	4
Molex 0386607804	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Thermoplastic	Steel	-40 °C	110 °C	Zinc Yellow Chromate	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	4	Through Hole	4
Molex 0386608603	1	600 V	PC Pin	12.7 mm	0.5 in	45 A	Barrier Block	Polybutylene Terephthalate (PBT)	Steel			Clear Chromate Zinc	Screws with Captive Plate	3 Wall (Tri)	Black	18 AWG	8 AWG	3	Chassis Panel Through Hole	3	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.62
		10	$ 4.85
		25	$ 4.50
		50	$ 4.31
		100	$ 4.17
		250	$ 4.03
		500	$ 3.96
		1000	$ 3.91

Description

General part information

038660 Series

2 Circuit 0.500" (12.70mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
