UCC35701N

Active

Texas Instruments

15V VCC, 1A DRIVER SINGLE ENDED 700KHZ VOLTAGE MODE PWM CONTROLLER WITH 13V/9V UVLO, 0C TO 70C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAdvanced Voltage Mode Pulse Width Modulator datasheet (Rev. C)Datasheet

UCC35701N

Active

Texas Instruments

15V VCC, 1A DRIVER SINGLE ENDED 700KHZ VOLTAGE MODE PWM CONTROLLER WITH 13V/9V UVLO, 0C TO 70C

Deep-Dive with AI

DocumentsAdvanced Voltage Mode Pulse Width Modulator datasheet (Rev. C)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC35701N

Control Features	Soft Start, Sync
Duty Cycle	99 %
Fault Protection	Current Limiting
Frequency - Switching	700 kHz
Internal Switch(s)	False
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Output Isolation	Isolated

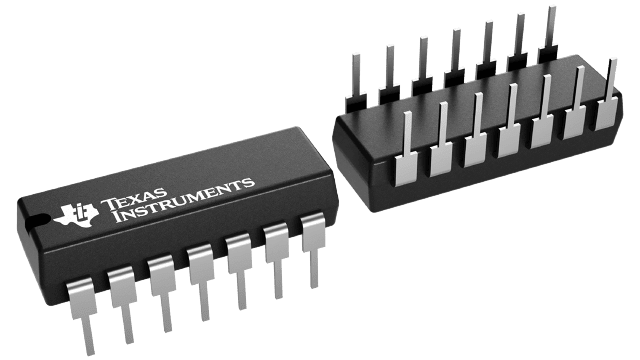

Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Topology	Flyback, Boost, Forward, Buck
Voltage - Supply (Vcc/Vdd) [Max]	15 V
Voltage - Supply (Vcc/Vdd) [Min]	9 V

UCC35701 Series

15V VCC, 1A Driver single ended 700KHz voltage mode PWM controller with 13V/9V UVLO, 0C to 70C

Part	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Frequency - Switching	Output Isolation	Topology	Package / Case [custom]	Package / Case [custom]	Package / Case	Mounting Type	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Duty Cycle	Package / Case [x]	Package / Case [y]
Texas Instruments UCC35701PWTR	15 V	9 V	14-TSSOP	700 kHz	Isolated	Boost Buck Flyback Forward	0.173 "	4.4 mm	14-TSSOP	Surface Mount	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %
Texas Instruments UCC35701PWTRG4	15 V	9 V	14-TSSOP	700 kHz	Isolated	Boost Buck Flyback Forward	0.173 "	4.4 mm	14-TSSOP	Surface Mount	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %
Texas Instruments UCC35701DTR	15 V	9 V		700 kHz	Isolated	Boost Buck Flyback Forward			14-SOIC	Surface Mount	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %	0.154 in	3.9 mm
Texas Instruments UCC35701D	15 V	9 V		700 kHz	Isolated	Boost Buck Flyback Forward			14-SOIC	Surface Mount	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %	0.154 in	3.9 mm
Texas Instruments UCC35701PW	15 V	9 V	14-TSSOP	700 kHz	Isolated	Boost Buck Flyback Forward	0.173 "	4.4 mm	14-TSSOP	Surface Mount	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %
Texas Instruments UCC35701N	15 V	9 V		700 kHz	Isolated	Boost Buck Flyback Forward			14-DIP	Through Hole	Current Limiting	-55 °C	150 °C	Soft Start Sync	99 %	0.3 "	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	125	$ 7.54
Texas Instruments	TUBE	1	$ 8.88
		100	$ 7.24
		250	$ 5.69
		1000	$ 4.83

Description

General part information

UCC35701 Series

The UCC35701/UCC35702 family of pulse width modulators is intended for isolated switching power supplies using primary side control. They can be used for both off-line applications and DC/DC converter designs such as in a distributed power system architecture or as a telecom power source.

The devices feature low startup current, allowing for efficient off-line starting, yet have sufficient output drive to switch power MOSFETs in excess of 500kHz.

Voltage feed forward compensation is operational over a 5:1 input range and provides fast and accurate response to input voltage changes over a 4:1 range. An accurate volt-second clamp and maximum duty cycle limit are also featured.
