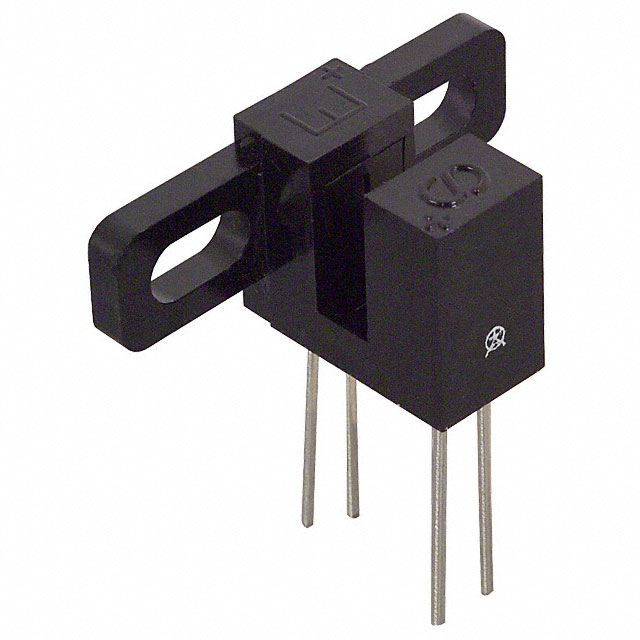

OPB841L55

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB841L55

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Type	Package / Case	Sensing Method	Sensing Distance	Sensing Distance	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Mounting Type	Output Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TT Electronics/Optek Technology OPB841L55	Unamplified	PCB Mount	Through-Beam	0.125 "	3.18 mm	50 mA	30 mA	Through Hole	Phototransistor	30 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.125" (3.18mm) Phototransistor PCB Mount
