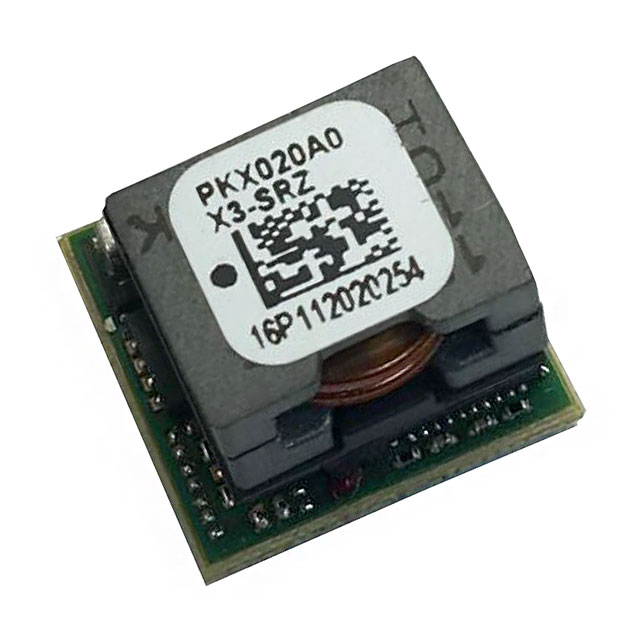

PKX020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-3.63V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKX020A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-3.63V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKX020A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 93.9 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 17-SMD Module |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Supplier Device Package | Module |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.53 | |
| 5 | $ 16.41 | |||
| 10 | $ 16.28 | |||
| 25 | $ 16.03 | |||
| 50 | $ 15.53 | |||
| 100 | $ 14.03 | |||
| Digi-Reel® | 1 | $ 16.53 | ||
| 5 | $ 16.41 | |||
| 10 | $ 16.28 | |||
| 25 | $ 16.03 | |||
| 50 | $ 15.53 | |||
| 100 | $ 14.03 | |||
| Tape & Reel (TR) | 200 | $ 11.26 | ||
Description
General part information
PKX020 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 20A 4.5V - 14.4V Input
