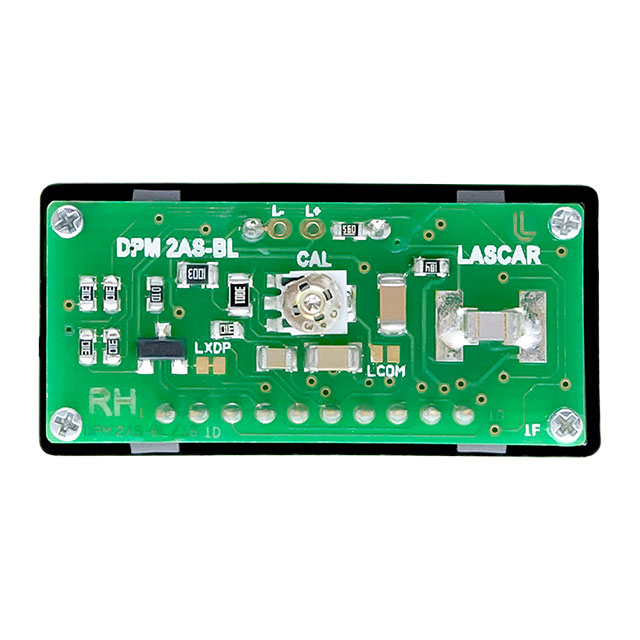

DPM 2AS-BL
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM 2AS-BL |
|---|---|
| Display Characters - Height [z] | 8.13 mm |
| Display Characters - Height [z] | 0.32 in |
| Display Type | LCD - Black Characters |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | -200 mV |
| Measuring Type | Voltage |
| Number of Characters Per Row | 3.5 |
| Panel Cutout Dimensions [x] | 33 mm |
| Panel Cutout Dimensions [y] | 15 mm |
| Termination Style | PC Pin |
| Type | Voltmeter |
| Voltage - Supply [Max] | 15 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 59.40 | |
| 10 | $ 56.99 | |||
Description
General part information
DPM 2AS Series
Voltmeter LCD - Black Characters Display Panel Mount
