WR9QG2667LCPNNAR6B

Active

GlobTek, Inc.

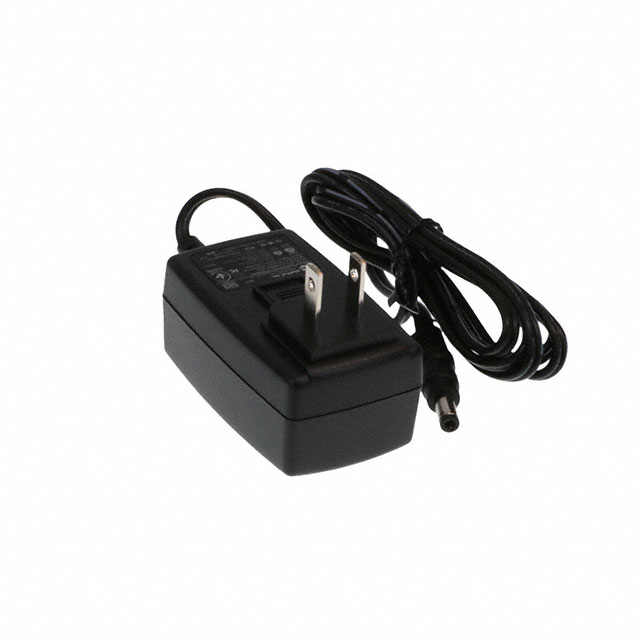

AC/DC WALL MOUNT ADAPTER 15V 40W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 15V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QG2667LCPNNAR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UL, cETLus, VCCI, ETL, UKRSepro, CE, CB, PSE, CCC, FCC, LPS, EAC, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	2.66 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	43.5 mm
Size / Dimension [x]	1.71 "
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.39 in
Size / Dimension [z]	35.3 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Applications	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Efficiency	Voltage - Output	Input Connector	Polarization	Current - Output (Max) [Max]	Form	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Approval Agency	No Load Power Consumption [Max]	Output Connector [z]
GlobTek, Inc. WR9QG2667LCPNNAR6B	Household Appliances ITE (Commercial) Medical	International	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	Multi-Blade (Sold Separately)	40 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	40 °C	0 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	15 VDC	Multi-Blade	Positive Center	2.66 A	Wall Mount (Class II)	90 VAC	264 VAC	1.2 m	47.2 in	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	75 mW
GlobTek, Inc. WR9QG2667CCPN(R6B)	Household Appliances ITE (Commercial) Medical	International	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	Multi-Blade (Sold Separately)	40 W	Barrel Plug	2.1 mm 5.5 mm		40 °C	0 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	15 VDC	Multi-Blade	Positive Center	2.66 A	Wall Mount (Class II)	90 VAC	264 VAC	1.2 m	47.2 in	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	75 mW	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 11.03

General part information

15V 40 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
