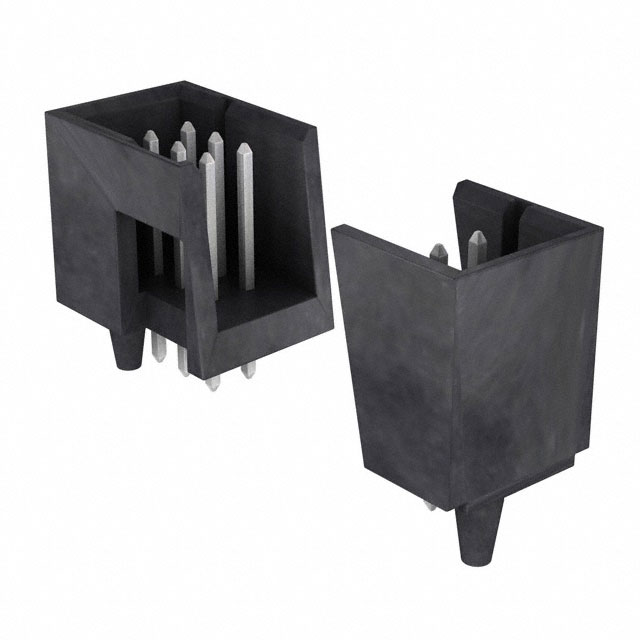

0015477536

Active

Molex

CONN HEADER VERT 36POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0015477536

Active

Molex

CONN HEADER VERT 36POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015477536

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Mating	8 mm
Contact Length - Mating	0.315 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	12.07 mm
Insulation Height [z]	0.475 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	14.48 mm
Overall Contact Length	0.57 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

001547 Series

2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 22 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

...

Part	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Applications	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Height	Insulation Height [z]	Number of Positions	Shrouding	Contact Finish - Post	Style	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Material Flammability Rating	Features	Connector Type	Fastening Type	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	FFC, FCB Thickness [Max]	FFC, FCB Thickness	FFC, FCB Thickness [Min]	Housing Color	Mating Cycles	Flat Flex Type	Pitch [x]	Pitch [x]	Cable End Type	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Locking Feature
Molex 0015477536	0.1 in	2.54 mm	14.48 mm	0.57 in	Automotive General Purpose Lighting Medical Telecommunications	Square	150 Áin	3.81 Ám	Copper Alloy	12.07 mm	0.475 in	36	Shrouded - 4 Wall	Tin	Board to Cable/Wire	Black	2.54 mm	0.1 in	2	Through Hole	All	0.13 in	3.3 mm	8 mm	0.315 in	Male Pin	150 Áin	3.81 Ám	Solder	UL94 V-0	Board Guide	Header	Latch Holder
Molex 0015474102									Phosphor Bronze			10								Free Hanging (In-Line)									IDC	UL94 V-0				250 VDC	15 µin	0.38 µm	Gold	0.28 mm	0.3 mm	0.13 mm	Black	50	CIC FFC	2.54 mm	0.1 in	Straight	Receptacle	-40 °C	105 ░C
Molex 0015474252									Phosphor Bronze											Free Hanging (In-Line)									IDC	UL94 V-0				250 VDC	15 µin	0.38 µm	Gold	0.28 mm	0.3 mm	0.13 mm	Black	50	CIC FFC	2.54 mm	0.1 in	Straight	Receptacle	-40 °C	105 ░C
Molex 0015477646	0.1 in	2.54 mm	14.48 mm	0.57 in	Automotive General Purpose Lighting Medical Telecommunications	Square	15 µin	0.38 µm	Copper Alloy	12.07 mm	0.475 in	46	Shrouded - 4 Wall	Tin	Board to Cable/Wire	Black	2.54 mm	0.1 in	2	Through Hole	All	0.13 in	3.3 mm	8 mm	0.315 in	Male Pin	74.8 Áin	1.9 Ám	Solder	UL94 V-0	Board Guide	Header	Latch Holder																	Gold
Molex 0015474177									Phosphor Bronze											Free Hanging (In-Line)									IDC	UL94 V-0				250 VDC	30 Áin	0.76 Ám	Gold	0.28 mm	0.3 mm	0.13 mm	Black	50	CIC FFC	2.54 mm	0.1 in	Straight	Receptacle	-40 °C	105 ░C		Latch Lock
Molex 0015477710	0.1 in	2.54 mm	14.48 mm	0.57 in	Automotive General Purpose Lighting Medical Telecommunications	Square	30 Áin	0.76 Ám	Copper Alloy	12.07 mm	0.475 in	10	Shrouded - 4 Wall	Tin	Board to Cable/Wire	Black	2.54 mm	0.1 in	2	Through Hole	All	0.13 in	3.3 mm	8 mm	0.315 in	Male Pin	74.8 Áin	1.9 Ám	Solder	UL94 V-0	Board Guide	Header	Latch Holder																	Gold
Molex 0015474187									Phosphor Bronze			18								Free Hanging (In-Line)									IDC	UL94 V-0				250 VDC	30 Áin	0.76 Ám	Gold	0.28 mm	0.3 mm	0.13 mm	Black	50	CIC FFC	2.54 mm	0.1 in	Straight	Receptacle	-40 °C	105 ░C		Latch Lock
Molex 0015477632	0.1 in	2.54 mm	14.48 mm	0.57 in	Automotive General Purpose Lighting Medical Telecommunications	Square	15 µin	0.38 µm	Copper Alloy	12.07 mm	0.475 in		Shrouded - 4 Wall	Tin	Board to Cable/Wire	Black	2.54 mm	0.1 in	2	Through Hole	All	0.13 in	3.3 mm	8 mm	0.315 in	Male Pin	74.8 Áin	1.9 Ám	Solder	UL94 V-0	Board Guide	Header	Latch Holder																	Gold
Molex 0015474250									Phosphor Bronze											Free Hanging (In-Line)									IDC	UL94 V-0				250 VDC	15 µin	0.38 µm	Gold	0.28 mm	0.3 mm	0.13 mm	Black	50	CIC FFC	2.54 mm	0.1 in	Straight	Receptacle	-40 °C	105 ░C
Molex 0015477742	0.1 in	2.54 mm	14.48 mm	0.57 in	Automotive General Purpose Lighting Medical Telecommunications	Square	30 Áin	0.76 Ám	Copper Alloy	12.07 mm	0.475 in	42	Shrouded - 4 Wall	Tin	Board to Cable/Wire	Black	2.54 mm	0.1 in	2	Through Hole	All	0.13 in	3.3 mm	8 mm	0.315 in	Male Pin	74.8 Áin	1.9 Ám	Solder	UL94 V-0	Board Guide	Header	Latch Holder																	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	960	$ 5.22

Description

General part information

001547 Series

2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 22 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
