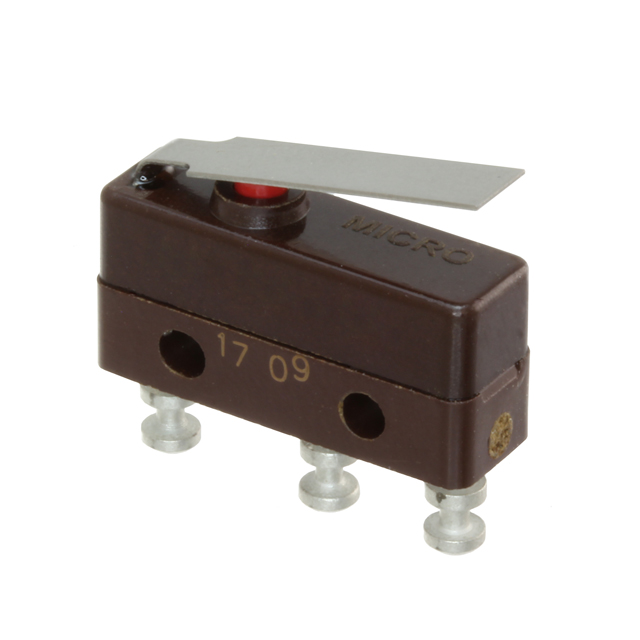

111SM1-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

111SM1-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111SM1-T2

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.03 in
Differential Travel	0.76 mm
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	198 gf
Operating Position [x]	0.35 in
Operating Position [x]	8.9 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	0.218 in
Pretravel	5.5 mm
Release Force	57 gf
Switch Function	On-Mom
Termination Style	Solder Turret
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

111SM Series

Part	Termination Style	Pretravel	Pretravel	Switch Function	Mechanical Life	Mounting Type	Differential Travel	Differential Travel	Overtravel	Overtravel	Release Force	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Operating Position [x]	Operating Position [x]	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Voltage Rating - DC	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions 111SM858-H403	Quick Connect - 0.110" (2.8mm)	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.03 in	0.76 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM2	Solder Lug	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.025 in	0.6 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT			5 A	Lever Roller	250 V	30 V	0.562 in	14.3 mm
Honeywell Sensing and Productivity Solutions 111SM1-T2	Solder Turret	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.03 in	0.76 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM117-H2	PC Pin	0.15 in	3.8 mm	On-Mom	10000000 Cycles	Through Hole	0.004 in	0.1 mm	0.3 mm	0.011 in	57 gf	227 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM518-T2	Solder Turret			On-Mom	10000000 Cycles	Chassis Mount							-55 °C	125 °C	SPDT
Honeywell Sensing and Productivity Solutions 111SM119-H2	PC Pin	0.15 in	3.8 mm	On-Mom	10000000 Cycles	Through Hole	0.004 in	0.1 mm	0.3 mm	0.011 in	57 gf	340 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM241	Solder Lug	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.055 in	1.4 mm	0.76 mm	0.03 in	14 gf	170 gf	-55 °C	125 °C	SPDT			5 A	Lever Roller	250 V	30 V	0.562 in	14.3 mm
Honeywell Sensing and Productivity Solutions 111SM244	Solder Lug	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.03 in	0.76 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM1	Solder Lug	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Chassis Mount	0.03 in	0.76 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V
Honeywell Sensing and Productivity Solutions 111SM1-H2	PC Pin	0.218 in	5.5 mm	On-Mom	10000000 Cycles	Through Hole	0.03 in	0.76 mm	0.76 mm	0.03 in	57 gf	198 gf	-55 °C	125 °C	SPDT	0.35 in	8.9 mm	5 A	Lever Straight	250 V	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 13.45

Description

General part information

111SM Series

Switch SPDT Chassis Mount
