24_SMC-50-2-110/111_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

24_SMC-50-2-110/111_NE

Technical Specifications

Parameters and characteristics for this part

Specification	24_SMC-50-2-110/111_NE

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Material	Connector Type	Dielectric Material	Impedance	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Finish	Center Contact Material	Shield Termination	Mounting Feature	Number of Ports	Housing Color	Connector Style	Contact Termination	Cable Group	Frequency - Max [Max]
Huber+Suhner, Inc. 24_SMC-50-2-110/111_NE	Brass	Female Socket Jack	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	50 Ohms	500	-65 ░C	165 °C	Gold	Gold	Brass	Crimp	Bulkhead - Front Side Nut	1	Gold	SMC	Crimp	188 316 RG-174	10 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 17.45

General part information

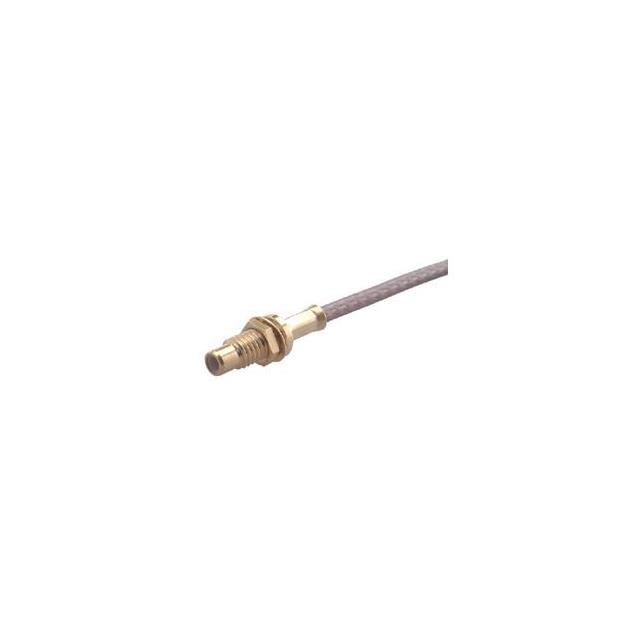

SMC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
