MXL7704-A-EVB

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR MXL7704

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR MXL7704

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Applications	Number of Outputs	Voltage - Output	Current - Output	Main Purpose	Outputs and Type	Frequency - Switching	Regulator Topology	Contents	Utilized IC / Part
MaxLinear, Inc. MXL7704-XQB-T	32-QFN (5x5)	-40 °C	125 ¯C	32-VFQFN Exposed Pad	3.3 V	5.5 V	4 V	Surface Mount	DSPs FPGA Microprocessor	5
MaxLinear, Inc. MXL7704-AQB-R	32-QFN (5x5)	-40 °C	125 ¯C	32-VFQFN Exposed Pad	3.3 V	5.5 V	4 V	Surface Mount	DSPs FPGA Microprocessor	5
MaxLinear, Inc. MXL7704-PQB-R	32-QFN (5x5)	-40 °C	125 ¯C	32-VFQFN Exposed Pad		5.5 V	4 V	Surface Mount	DSPs FPGA Microprocessor	4	Multiple
MaxLinear, Inc. MXL7704-A-EVB					1.2 V 1.35 V 1.8 V 3.3 V	5.5 V	4 V					1.5 A 2.5 A 4 A 100 mA	DC/DC Step Down with LDO	5	1.5 MHz	Buck	Board(s)	MxL7704
MaxLinear, Inc. MXL7704-RQB-R	32-QFN (5x5)	-40 °C	125 ¯C	32-VFQFN Exposed Pad		5.5 V	4 V	Surface Mount	DSPs FPGA Microprocessor	4	Multiple
MaxLinear, Inc. MXL7704-AQB-T	32-QFN (5x5)	-40 °C	125 ¯C	32-VFQFN Exposed Pad	3.3 V	5.5 V	4 V	Surface Mount	DSPs FPGA Microprocessor	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

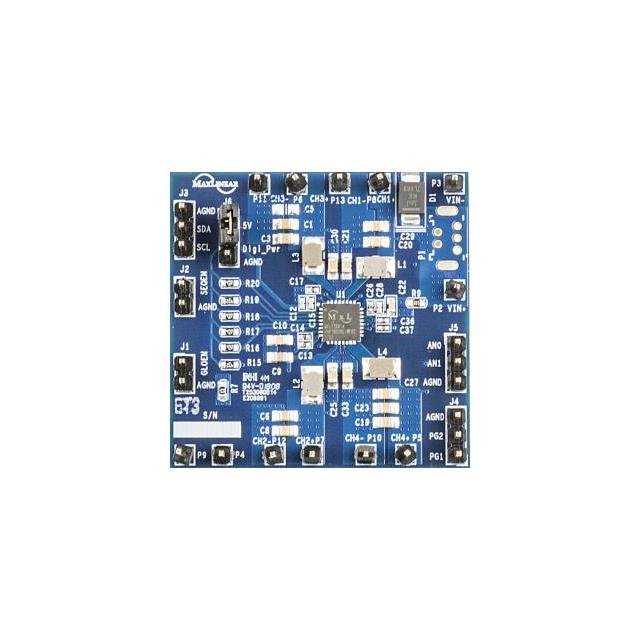

MxL7704 - 5 Non-Isolated Outputs DC/DC, Step Down with LDO Evaluation Board
