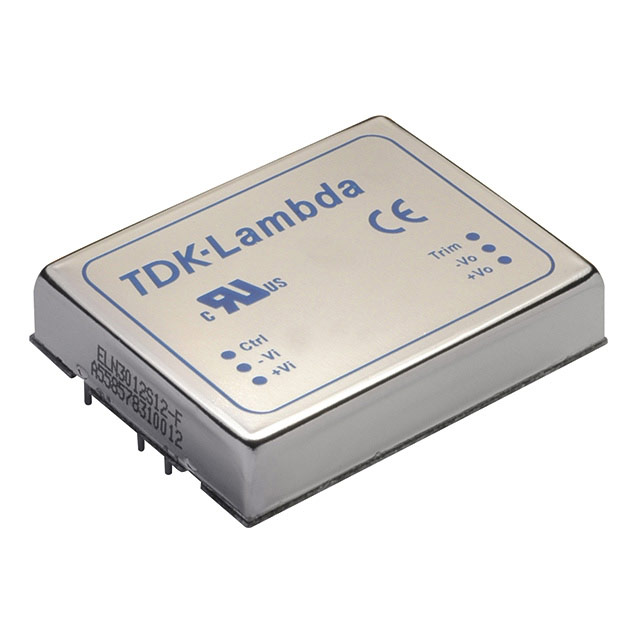

PXE30-12D15

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 30 W, 2 OUTPUT, 15 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPXE Series Overview Datasheet +3

PXE30-12D15

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 30 W, 2 OUTPUT, 15 V

Deep-Dive with AI

DocumentsPXE Series Overview Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXE30-12D15

Applications	ITE (Commercial)
Current - Output (Max)	1 A
Current - Output (Max)	1 A
Efficiency	87 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 7 Leads
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	8.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

PXE30 Series

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current - Output (Max)	Voltage - Output 2	Power (Watts)	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Mounting Type	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Current - Output (Max)
TDK-LAMBDA PXE30-48WD12	1.6 kV	100 °C	-40 °C	75 V	2	OCP OVP Remote On/Off SCP	Isolated Module	0.4 in	50.8 mm	40.64 mm	8-DIP Module 7 Leads	1.25 A	-12 V	30 W	ITE (Commercial)	12 V	18 V	Through Hole
TDK-LAMBDA PXE30-24D12	1.6 kV	100 °C	-40 °C	36 V	2	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 7 Leads	1.25 A	-12 V	30 W	ITE (Commercial)	12 V	18 V	Through Hole	88 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm
TDK-LAMBDA PXE30-48S15	1.6 kV	100 °C	-40 °C	75 V	1	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 6 Leads			30 W	ITE (Commercial)	15 V	36 V	Through Hole	90 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm	2 A
TDK-LAMBDA PXE30-24S12	1.6 kV	100 °C	-40 °C	36 V	1	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 6 Leads			30 W	ITE (Commercial)	12 V	18 V	Through Hole	89 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm	2.5 A
TDK-LAMBDA PXE30-24S05	1.6 kV	100 °C	-40 °C	36 V	1	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 6 Leads			30 W	ITE (Commercial)	5 V	18 V	Through Hole	88 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm	6 A
TDK-LAMBDA PXE30-12D15	1.6 kV	100 °C	-40 °C	18 V	2	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 7 Leads	1 A	-15 V	30 W	ITE (Commercial)	15 V	9 V	Through Hole	87 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm		1 A
TDK-LAMBDA PXE30-48WS3P3	1.6 kV	100 °C	-40 °C	75 V	1	OCP OVP Remote On/Off SCP	Isolated Module	0.4 in	50.8 mm	40.64 mm	8-DIP Module 6 Leads			30 W	ITE (Commercial)	3.3 V	18 V	Through Hole	87 %						6 A
TDK-LAMBDA PXE30-24WD12	1.6 kV	100 °C	-40 °C	36 V	2	OCP OVP Remote On/Off SCP	Isolated Module	0.4 in	50.8 mm	40.64 mm	8-DIP Module 7 Leads	1.25 A	-12 V	30 W	ITE (Commercial)	12 V	9 V	Through Hole
TDK-LAMBDA PXE30-48D12	1.6 kV	100 °C	-40 °C	75 V	2	OCP OVP Remote On/Off SCP	Isolated Module		50.8 mm		8-DIP Module 7 Leads	1.25 A	-12 V	30 W	ITE (Commercial)	12 V	36 V	Through Hole	88 %	2 in	40.6 mm	0.4 "	1.6 "	8.6 mm
TDK-LAMBDA PXE30-24S3P3	1.6 kV	100 °C	-40 °C	36 V	1	OCP OVP Remote On/Off SCP	Isolated Module	0.4 in	50.8 mm	40.64 mm	8-DIP Module 6 Leads			30 W	ITE (Commercial)	3.3 V	18 V	Through Hole	86 %						6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.05
		10	$ 98.45
		25	$ 91.94
		50	$ 86.40
Newark	Each	1	$ 104.05
		10	$ 98.45
		25	$ 91.94
		50	$ 86.40

Description

General part information

PXE30 Series

Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 18V Input
