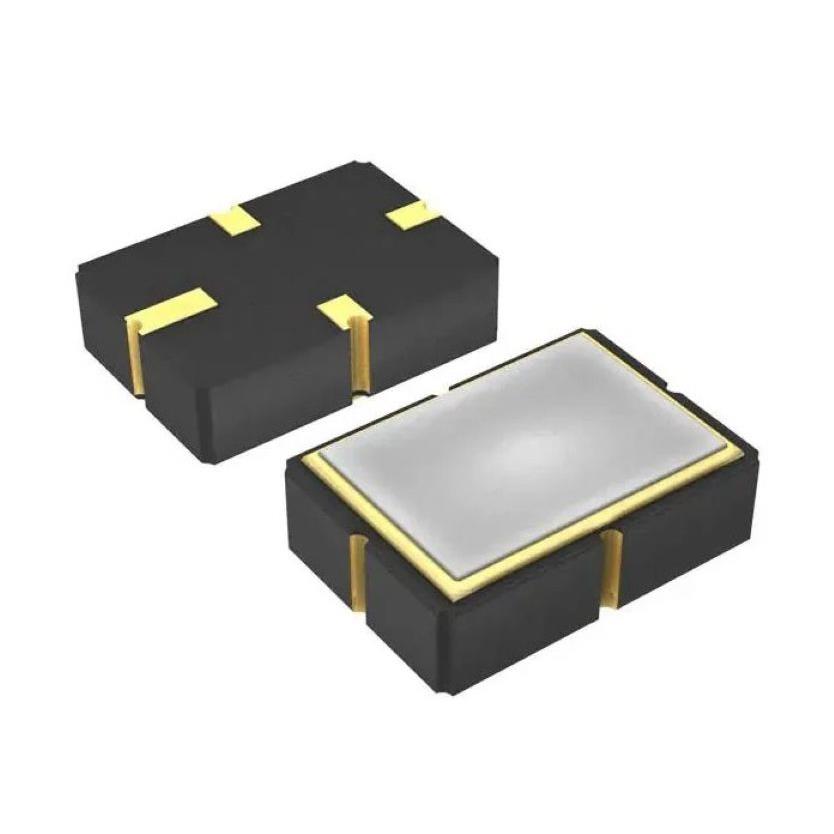

SF2474H
ActiveRFMi
FILTER SAW 1.176GHZ 4-SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2474H
ActiveRFMi
FILTER SAW 1.176GHZ 4-SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2474H |
|---|---|
| Applications | General Purpose |
| Frequency - Center | 1.176 GHz |
| Height (Max) [Max] | 0.035 in |
| Height (Max) [Max] | 0.9 mm |
| Insertion Loss | 3.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 2.05 mm |
| Size / Dimension [x] | 0.081 in |
| Size / Dimension [y] | 0.065 in |
| Size / Dimension [y] | 1.65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SF2474 Series
1.176GHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 3.2dB Bandwidth 4-SMD, No Lead
