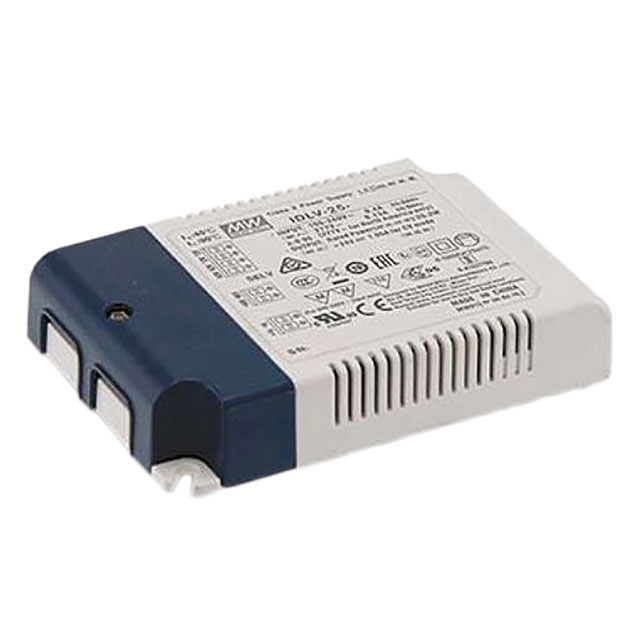

IDLV-25A-48

Obsolete

MEAN WELL USA Inc.

I/P:90-295VAC O/P:+48V 0.52A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

I/P:90-295VAC O/P:+48V 0.52A

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Features	Topology	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Voltage - Isolation	Type	Dimming	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Termination Style	Voltage - Input (Min) [Min]	Number of Outputs
MEAN WELL USA Inc. IDLV-25A-24	Chassis Mount	OCP SCP	AC DC Converter	81 %	CB CCC CE cURus EAC ENEC RCM	-20 C	90 °C	24 V	3750 V	Constant Voltage	PWM	295 VAC	1.05 A	25 W	Terminal Block	90 VAC	1
MEAN WELL USA Inc. IDLV-25A-48	Chassis Mount	OCP SCP	AC DC Converter	83 %	CB CCC CE cURus EAC ENEC RCM	-20 C	90 °C	48 V	3750 V	Constant Voltage	Analog PWM	295 VAC	520 mA	25 W	Terminal Block	90 VAC	1
MEAN WELL USA Inc. IDLV-25A-12	Chassis Mount	OCP SCP	AC DC Converter	80 %	CB CCC CE cURus EAC ENEC RCM	-20 C	90 °C	12 V	3750 V	Constant Voltage	PWM	295 VAC	1.8 A	22 W	Terminal Block	90 VAC	1
MEAN WELL USA Inc. IDLV-25-24	Chassis Mount	OCP SCP	AC DC Converter	81 %	CB CCC CE cURus EAC ENEC RCM	-20 C	90 °C	24 V	3750 V	Constant Voltage	PWM	295 VAC	1.05 A	25 W	Terminal Block	90 VAC	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

520mA 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
