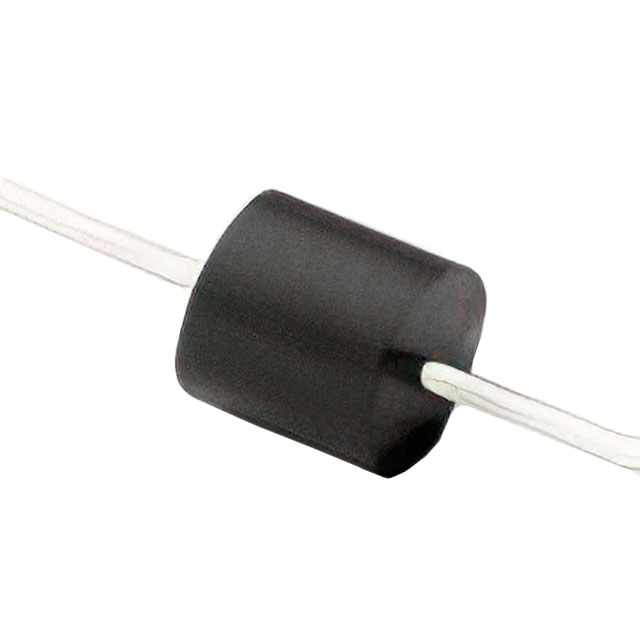

M1.5KE530A

Active

MDE Semiconductor Inc

DO-201 ESD AND SURGE PROTECTION (TVS/ESD) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

M1.5KE530A

Active

MDE Semiconductor Inc

DO-201 ESD AND SURGE PROTECTION (TVS/ESD) ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1.5KE530A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	2.1 A
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	DO-201
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	503.5 V
Voltage - Clamping (Max) @ Ipp [Max]	725 V
Voltage - Reverse Standoff (Typ)	450 V

1.5KE Series

Part	Package / Case	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Unidirectional Channels [custom]	Supplier Device Package	Type	Voltage - Clamping (Max) @ Ipp
MDE Semiconductor Inc M1.5KE75A	Axial DO-201AA DO-27	64.1 V	14.8 A	1.5 kW	1500 W	71.3 V	-55 °C	175 ░C	General Purpose	103 V	Through Hole	1	DO-201	Zener
MDE Semiconductor Inc M1.5KE51A	Axial DO-201AA DO-27	43.6 V	21.7 A	1.5 kW	1500 W	48.5 V	-55 °C	175 ░C	General Purpose	70.1 V	Through Hole	1	DO-201	Zener
MDE Semiconductor Inc M1.5KE530A	Axial DO-201AA DO-27	450 V	2.1 A	1.5 kW	1500 W	503.5 V	-55 °C	175 ░C	General Purpose	725 V	Through Hole	1	DO-201	Zener
MDE Semiconductor Inc M1.5KE27A	Axial DO-201AA DO-27	23.1 V		1.5 kW	1500 W	25.7 V	-55 °C	175 ░C	General Purpose		Through Hole	1	DO-201	Zener	37.5 V
MDE Semiconductor Inc M1.5KE22A	Axial DO-201AA DO-27	18.8 V	49.7 A	1.5 kW	1500 W	20.9 V	-55 °C	175 ░C	General Purpose		Through Hole	1	DO-201	Zener	30.6 V
MDE Semiconductor Inc M1.5KE130A	Axial DO-201AA DO-27	111 V	8.5 A	1.5 kW	1500 W	124 V	-55 °C	175 ░C	General Purpose		Through Hole	1	DO-201	Zener	179 V
MDE Semiconductor Inc M1.5KE30A	Axial DO-201AA DO-27	25.6 V	36.7 A	1.5 kW	1500 W	28.5 V	-55 °C	175 ░C	General Purpose	41.4 V	Through Hole	1	DO-201	Zener
MDE Semiconductor Inc M1.5KE20A	Axial DO-201AA DO-27	17.1 V	54.9 A	1.5 kW	1500 W	19 V	-55 °C	175 ░C	General Purpose	27.7 V	Through Hole	1	DO-201	Zener
MDE Semiconductor Inc M1.5KE100A	Axial DO-201AA DO-27	85.5 V	11.1 A	1.5 kW	1500 W	95 V	-55 °C	175 ░C	General Purpose		Through Hole	1	DO-201	Zener	137 V
MDE Semiconductor Inc M1.5KE250A	Axial DO-201AA DO-27		4.4 A	1.5 kW	1500 W	237 V	-55 °C	175 ░C	General Purpose		Through Hole	1	DO-201	Zener	344 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 2.95
LCSC	Piece	1	$ 8.18
		200	$ 3.27
		400	$ 3.16
		1000	$ 3.10

Description

General part information

1.5KE Series

725V Clamp 2.1A Ipp Tvs Diode Through Hole DO-201

Documents

Technical documentation and resources

No documents available
