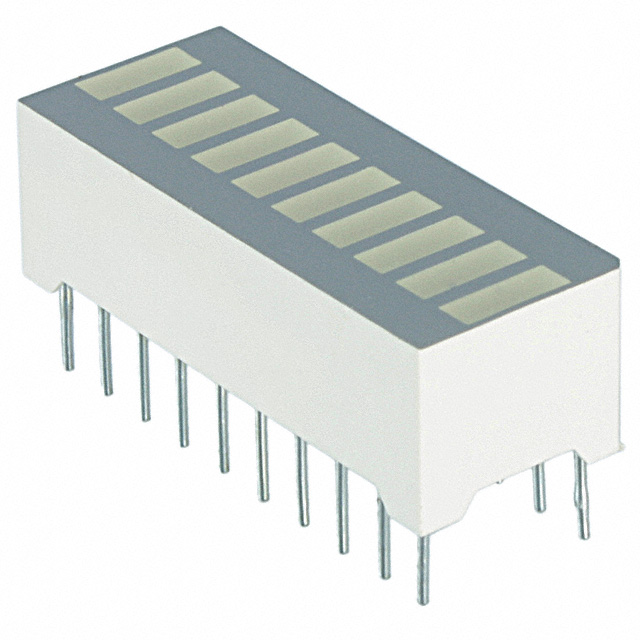

DC7G3HWA

Obsolete

Kingbright

DUAL COLOR LED ARRAY, BRIGHT RED/GREEN, DIFFUSED WHITE, 5.08MM, ROHS COMPLIANT PACKAGE-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC7G3HWA

Obsolete

Kingbright

DUAL COLOR LED ARRAY, BRIGHT RED/GREEN, DIFFUSED WHITE, 5.08MM, ROHS COMPLIANT PACKAGE-20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC7G3HWA

Color	Green (x 7), Red (x 3)
Configuration	10 Wide
Configuration	DIP, Bar
Current [custom]	25 mA
Current [custom]	25 mA
Lens Type	Diffused, White
Millicandela Rating [custom]	12 mcd
Millicandela Rating [custom]	1.9 mcd
Mounting Type	Through Hole
Voltage Rating	2.2 V, 2.25 V
Wavelength - Peak [custom]	700 nm, 565 nm

DC7G3 Series

Part	Voltage Rating	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Current [custom]	Current [custom]	Configuration	Configuration	Lens Type	Mounting Type
Kingbright DC7G3HWA	2.2 V 2.25 V	565 nm 700 nm	12 mcd	1.9 mcd	Green (x 7) Red (x 3)	25 mA	25 mA	10 Wide	Bar DIP	Diffused White	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DC7G3 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 7), Red (x 3) Diffused, White 2.2V Green, 2.25V Red 25mA Green, 25mA Red Through Hole
