74ABT04N,112

Obsolete

Freescale Semiconductor - NXP

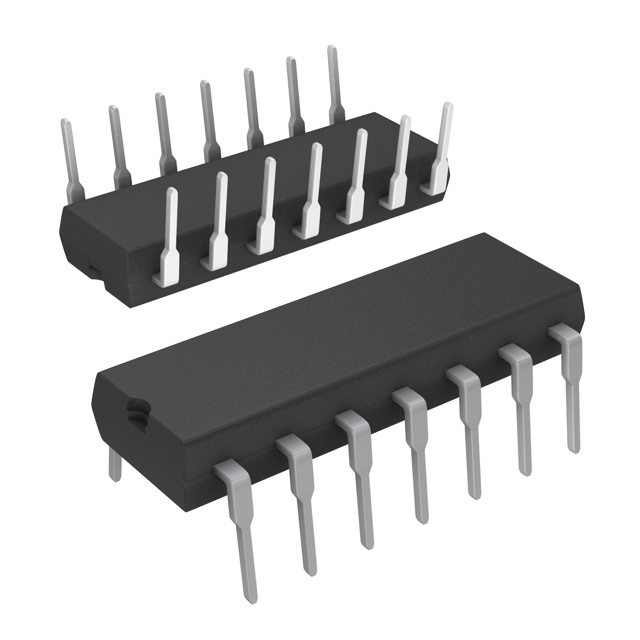

IC INVERTER 6CH 1-INP 14DIP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC INVERTER 6CH 1-INP 14DIP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT04N,112

Current - Output High, Low [custom]	15 mA
Current - Output High, Low [custom]	20 mA
Current - Quiescent (Max) [Max]	50 µA
Input Logic Level - Low	0.8 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	3.4 ns
Mounting Type	Through Hole
Number of Circuits	6
Number of Inputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Supplier Device Package	14-DIP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Number of Inputs	Mounting Type	Supplier Device Package	Current - Quiescent (Max) [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Number of Circuits	Package / Case	Package / Case [y]	Package / Case [x]	Input Logic Level - Low
Freescale Semiconductor - NXP 74ABT04N,112	1	Through Hole	14-DIP	50 µA	15 mA	20 mA	85 °C	-40 °C	Inverter	4.5 V	5.5 V	3.4 ns	6	14-DIP	7.62 mm	0.3 "	0.8 V
Freescale Semiconductor - NXP 74ABT04D/AUJ	1	Surface Mount	14-SO	50 µA	15 mA	20 mA	85 °C	-40 °C	Inverter	4.5 V	5.5 V	2.5 ns	6	14-SOIC	3.9 mm	0.154 in	0.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 6 Channel 14-DIP
