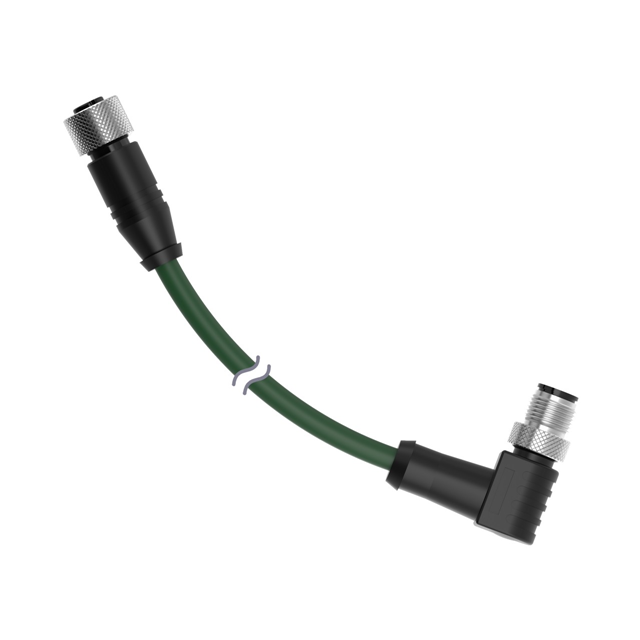

IVURDM-QD-815RA

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Search across all available documentation for this part.

IVURDM-QD-815RA

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IVURDM-QD-815RA

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Y-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round - Split
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	15 ft
Length [x]	4.57 m
Shielding	Shielded
Usage	Industrial Environments

IVURDM Series

Part	2nd Connector Number of Positions Loaded	Ingress Protection	2nd Connector Mounting Type	2nd Connector Type	2nd Connector Gender	Assembly Configuration	2nd Connector Shell Size - Insert	1st Connector Number of Positions	1st Connector Gender	1st Connector Orientation [custom]	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	Shielding	Cable Material	1st Connector Shell Size - Insert	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Type	Cable Type	Usage	Color	Length	Length
BANNER ENGINEERING IVURDM-QDK-815RA	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Y-Adapter on One End	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)	15 ft	4.57 m	Receptacle Right Angle	Round - Split	Industrial Environments	Black
BANNER ENGINEERING IVURDM-QD-806	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Standard	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)			Receptacle	Round	Industrial Environments	Black	6 ft	1.83 m
BANNER ENGINEERING IVURDM-QD-803	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Standard	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)	3 ft	914.4 mm	Receptacle	Round	Industrial Environments	Black
BANNER ENGINEERING IVURDM-QD-815	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Standard	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)	15 ft	4.57 m	Receptacle	Round	Industrial Environments	Black
BANNER ENGINEERING IVURDM-QD-815RA	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Y-Adapter on One End	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)	15 ft	4.57 m	Receptacle Right Angle	Round - Split	Industrial Environments	Black
BANNER ENGINEERING IVURDM-QD-850	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Standard	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)			Receptacle	Round	Industrial Environments	Black	50 ft	15.24 m
BANNER ENGINEERING IVURDM-QDK-806RA	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Y-Adapter on One End	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)			Receptacle Right Angle	Round - Split	Industrial Environments	Black	6 ft	1.83 m
BANNER ENGINEERING IVURDM-QD-830	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Plug	Female Sockets	Standard	M12	8 positions	Male Pins	Keyed	8	All	Shielded	Polyvinyl Chloride (PVC)	M12	Free Hanging (In-Line)			Receptacle	Round	Industrial Environments	Black	30 '	9.14 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 140.00
Newark	Each	1	$ 143.00

Description

General part information

IVURDM Series

Circular Cable Assembly Shielded 15.00' (4.57m)
